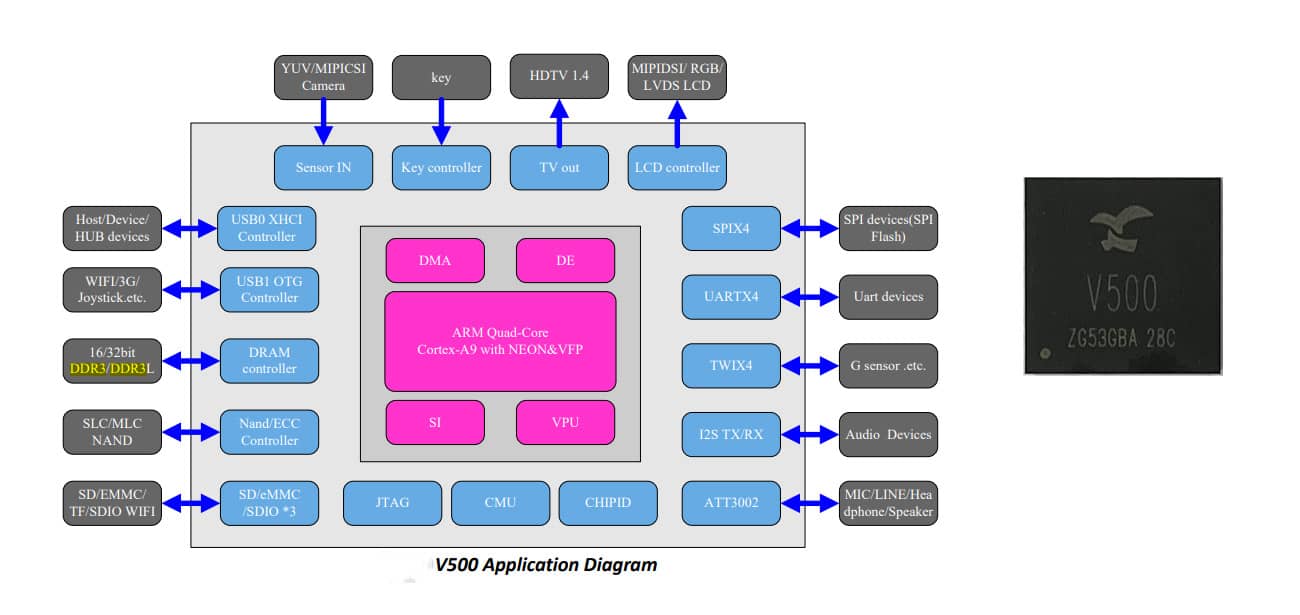

Product Description:
1. ARM Cortex-A9 quad-core 32-bit processor with a maximum clock speed of up to 1.2GHz.
2. Supports VFP (Vector Floating Point) architecture, compliant with IEEE754 floating-point standard.
3. Supports music decoding formats such as MP3 and WMA.
4. Supports video decoding for H.264, MPEG4, and other common formats, up to 1920×1080@60Hz.
5. H.264 baseline video encoding; input formats include YUV420, RGB, and others.
6. Image/video encoding supports scaling; maximum encoding resolution up to 1920×1080@60Hz.
7. Supports MIPI-CSI camera interface.
8. Hardware JPEG decoder with support for images up to 30000×30000 resolution.
9. Audio SPDIF TX mode with sampling rates up to 192KHz.
10. Supports I2S Hi-Fi audio output.
11. Integrated LCD interfaces compatible with LVDS, RGB, and MIPI DSI, up to 1920×1080@60Hz.
12. Rich peripheral interface design; supports up to 4 UART expansion channels.
13. Compatible with NAND/NOR Flash and eMMC; cost-optimized design according to application needs.
14. Supports expandable DDR3/LPDDR3 memory, up to 2GB.
15. Supports external storage via SD, TF, USB, and USB Device.
16. Supports Wi-Fi and Bluetooth wireless connectivity.
17. Runs Linux OS and seamlessly integrates with Actions' GUI software.
18. Integrated with Tuya Smart App-based cloud photo frame system.

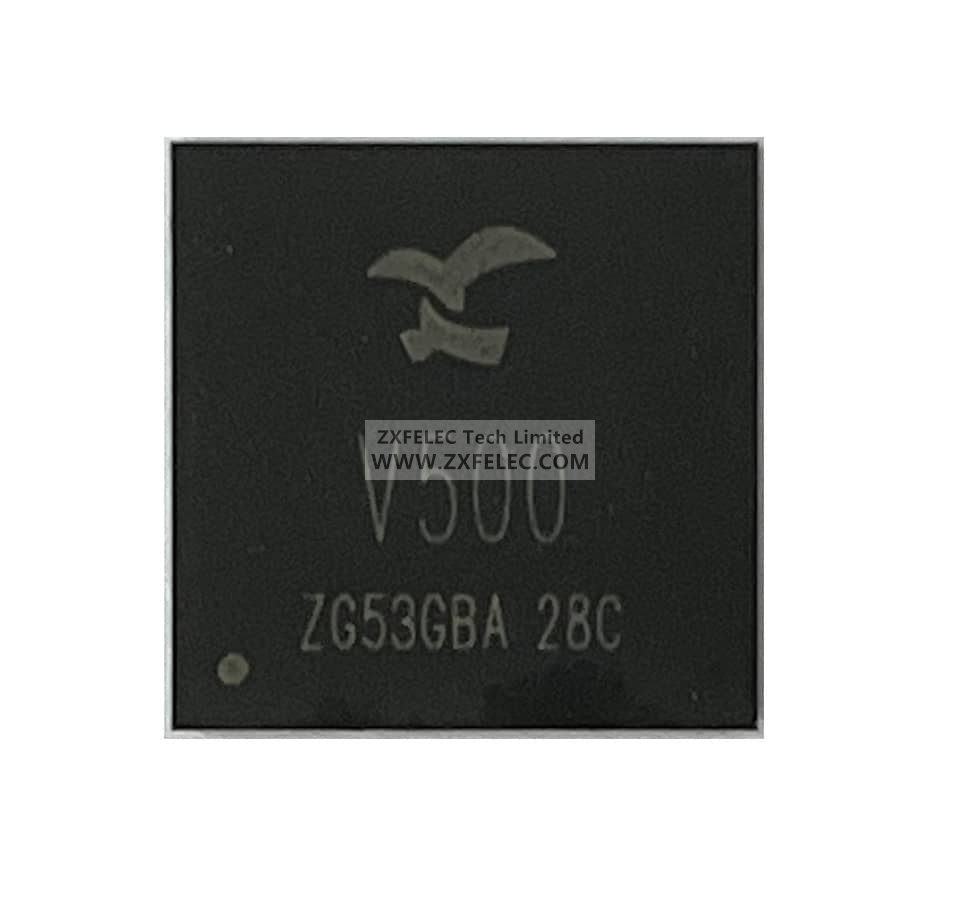

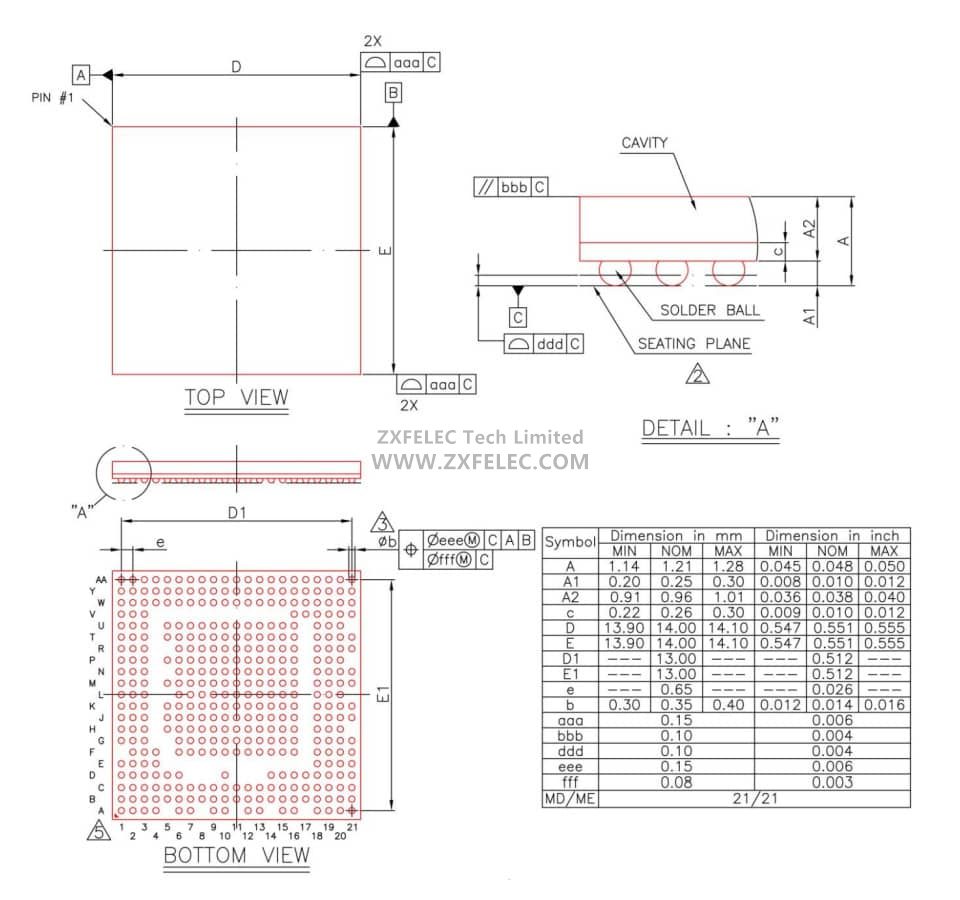

19. Package: TFBGA372, ball pitch: 0.65mm.
20. Dimensions: 14 × 14 mm.
Products Application:
1. Network video player with Wi-Fi, Bluetooth, and RJ45 connectivity, supporting integration with third-party video platforms.
2. Network set-top box with Wi-Fi, Bluetooth, and RJ45 interface, capable of running network protocol stacks.
3. Video advertising player for outdoor high-definition playback and content scheduling.
4. Self-service terminal for banks and hotels, equipped with an integrated touchscreen interface.
5. Outdoor large-screen digital signage display.
6. Smart cloud photo frame connected to the Tuya Smart App, enabling remote transfer of images and video files, as well as device management.
7. Industrial PC with multiple external interfaces, including serial ports, USB, RS485, and RJ45, meeting industrial application requirements.
8. Video encoder supporting MIPI CSI camera input for real-time video capture and storage.
Product examples：
 |
Name: Ultra-Wide Bar-Type Digital Signage Display
Features: Designed for ultra-wide content display in retail, elevators, and public areas. Supports video, audio, and image playback with flexible scheduling. Offers remote content updates and device control via RJ45, Wi-Fi, and Bluetooth—ideal for smart, space-saving signage applications.
|
 |
Name: Large Floor-Standing Advertising Machine
Features: Designed for dynamic information display and advertising. Supports remote content updates and device management via Wi-Fi, RJ45, and 4G-LTE. Also functions as an information inquiry terminal at entrances. Ideal for retail, public spaces, and transportation hubs.
|
 |
Name: Cloud Photo Frame
Features: Photo, video, and music playback; automatic slideshow with transition effects; scheduled power on/off; weather forecast display; Wi-Fi connectivity enables remote sharing of photos and videos to the cloud photo frame via the Tuya Smart App.
|
