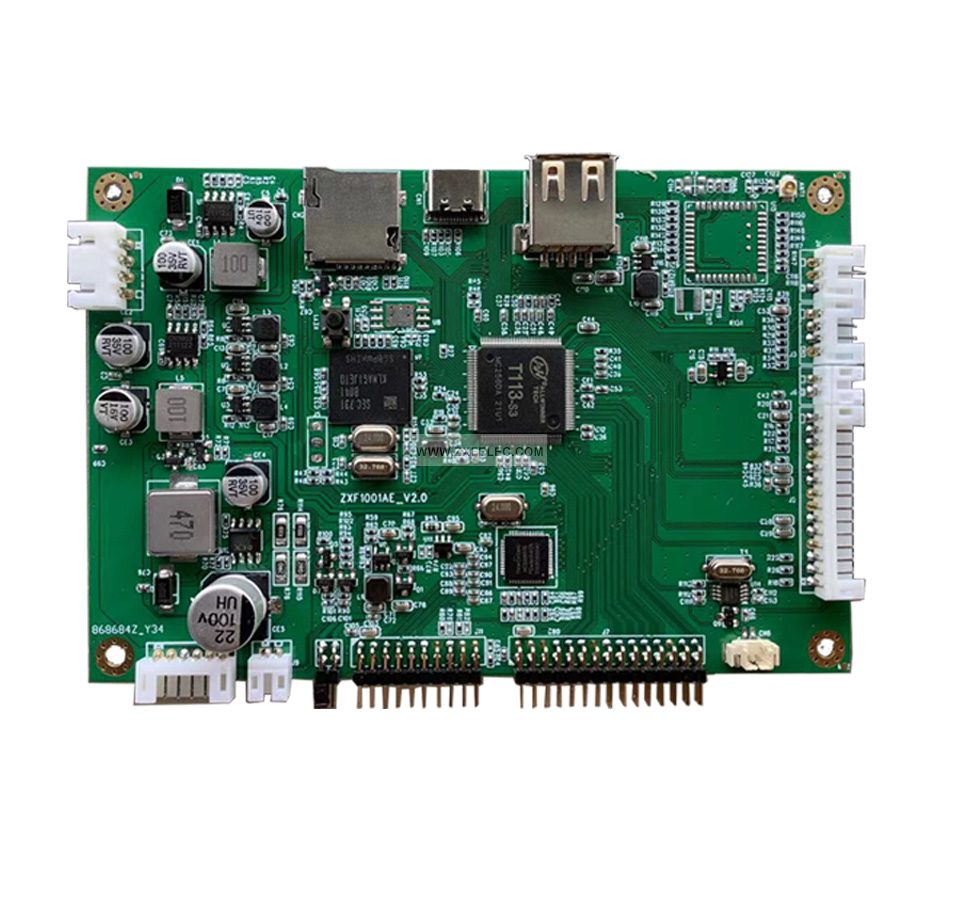

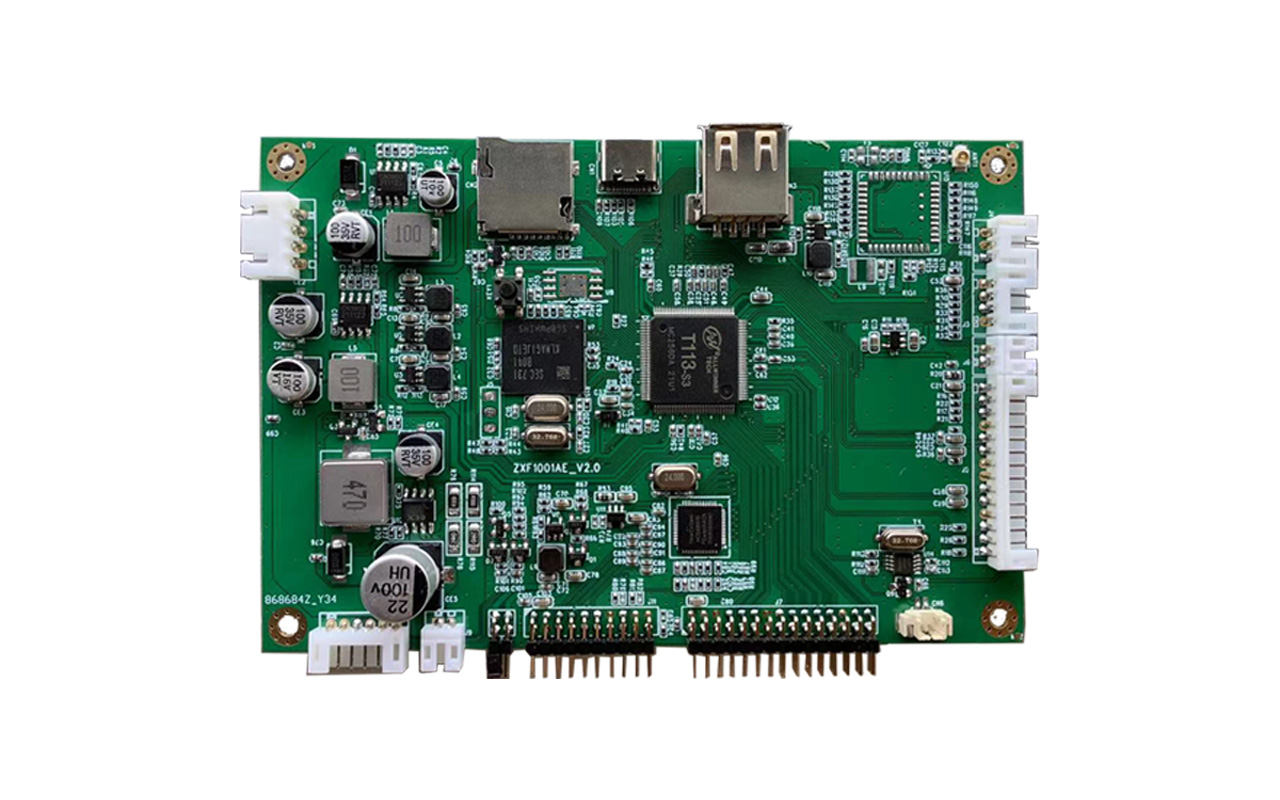

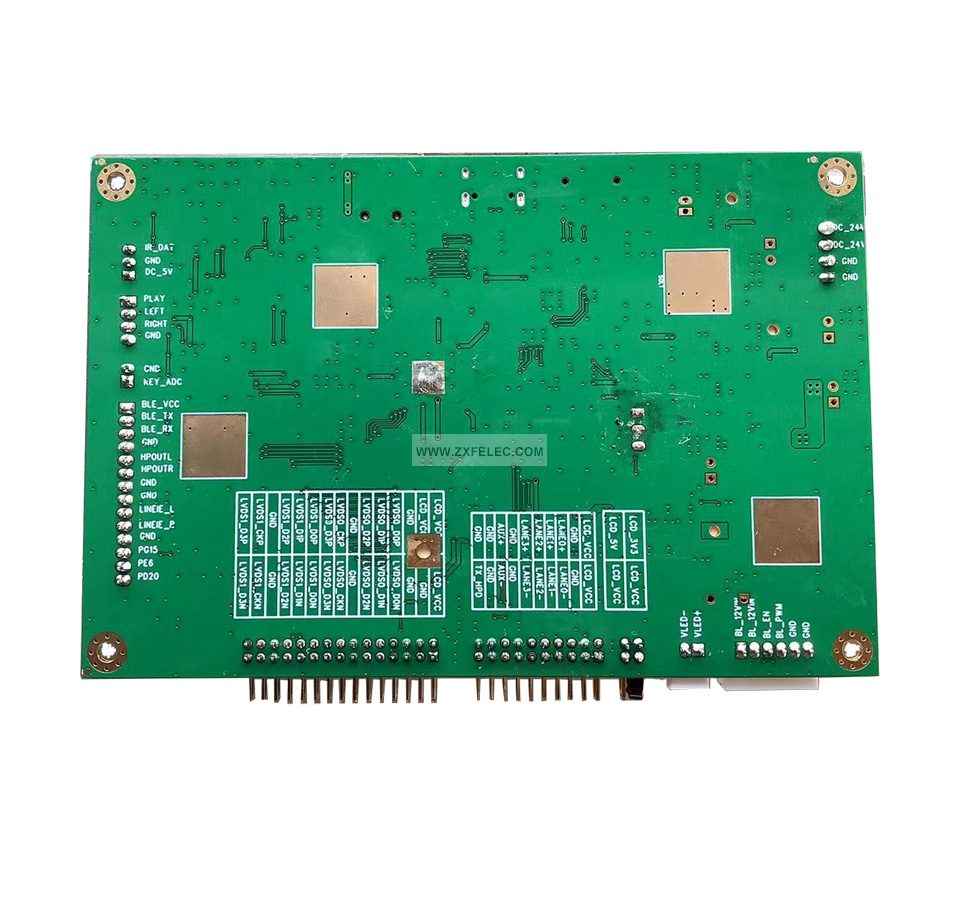

Allwinner T113-S3 turnkey solution, video/music player, network audio, wireless wifi6 and ble on board, ZXFHMI-T113S3AVBPR01

Application and Function:

1. video playback device, large screen display.
2. network audio, entertainment system.
3. Network digital photo frame, file remote transfer.
4. Smart speaker box, video screen projection.
5. Desktop display, USB PC second monitor.

Inquery

Description Inquery

Product Function：

1. Allwiner T113-S3 high performance processer, dual-core arm cortex-A7, SIP 128M DDR3 memory.
2. On-board EMMC storage, maximum support 128G EMMC.
3. H.264/H.265 video playback, maximum playback support 1920*1080P30.
4. Support MP3, WMA, FLAC. OGG and other audio files playback.
5. Support hardware decoding of JPG, BMP and other image decoder.
6. Support LVDS dual-channel LCD output interface, maximum output 1920*1080@60Hz.
7. Support EDP display interface, output maximum pixel 1920*1080@60Hz.
8. On-board RTC clock circuit, support timer auto power on/off and alarm clock, perpetual calendar and other functions.
9. Onboard WIFI6 + BT5.0, support AP/station working mode.
10. Support infrared remote control and KEY ADC operation mode.
11. Support external expansion ports, including UART, LINE-OUT, LINE-IN and other control GPIOs.
12. USB HOST, can be connected to U disk, mouse, keyboard and other peripherals.
13. On-board LED backlight driver circuit for easy installation.
14. TF card playback, support storage expansion.

15. Operate OS: allwiner tina linux.

Specification:

1	Product Name	Allwiner T113-S3 multimedia player
2	Productor Model	ZXFHMI-T113S3AVBPR01
3	Processer chip	Allwiner T113-S3 Cortex-A7, 1.0GHz
4	DDR memory	SIP 128M DDR3
5	EMMC storage	EMMC 16G (Customize)
6	Display output	EDP + 2CHLVDS (resolution: 19201080)
7	USB DEVICE	TYPE-C connector，OTA and copy file to device
8	USB HOST	USB2.0 HOST
9	LINE OUT	stereo line out
10	UART port	UART*1CH
11	Encoder switch	support
12	Remote controller	support
13	LCD Backlight	Backlight driver on board
14	Wireless	WIFI6 + BLE5.0
15	Operation OS	Linux OS
16	PCB Size	120(mm)(L) * 80(mm)(W) * 1.2(mm)(T)

Product application：

1. Smart information labels。

2. Large screen entertainment system.
3. Information release information display.
4. Instrument center display.
5. Intelligent cloud photo frames.
6. Projection display device.
7. Desktop display devices and PC USB monitor.

Application examples：

	Productor Name：Travel trolley audio Function： Play built-in videos, music, picture files, you can also connect the mobile phone Bluetooth to play the content inside the mobile phone, or directly play mobile phone videos, network videos and other content by pushing the mobile phone screen.
	Product name: video player device Function: Content can be stored on a local disk or published over the network. According to the preset playback mode, rotate, insert, display station logo and other functions. Connect to the WIFI network to update content OTA without card copying.
	Product Name: Intelligent Cloud Album Function: Through the network to realize mobile phone album content management, network playback, local synchronization and other functions, mobile phone video/picture files are directly transmitted to the photo frame, without the need for traditional storage media such as plug-in cards.
