Rockchip RK3568 3.5 inch mother board, edge computing, face recognition, digital tag, commercial motherboard, ZF-RK3568S35PR01

Application and Function:

1. High-end hard disk recording equipment.
2. Intelligent cloud service terminal, remote WEB server.
3. Query the terminal and sell the all-in-one machine.
4. Smart class card, information release terminal.
5. Industrial mother board, RTOS+Linux dual system run.
6. Edge computing, NAS storage, video encoder.
7. Android 12, ubuntu, and SDK customize development.
8. Multi-screen display, POS device application.

Inquery

Description Inquery

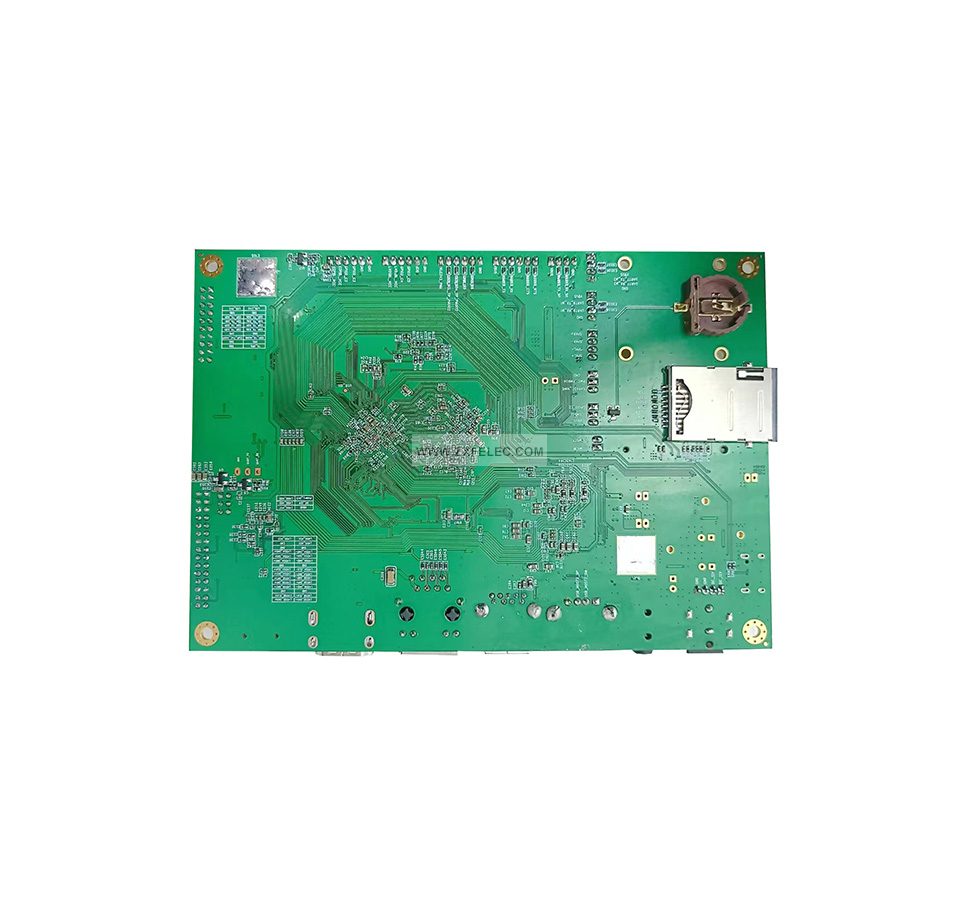

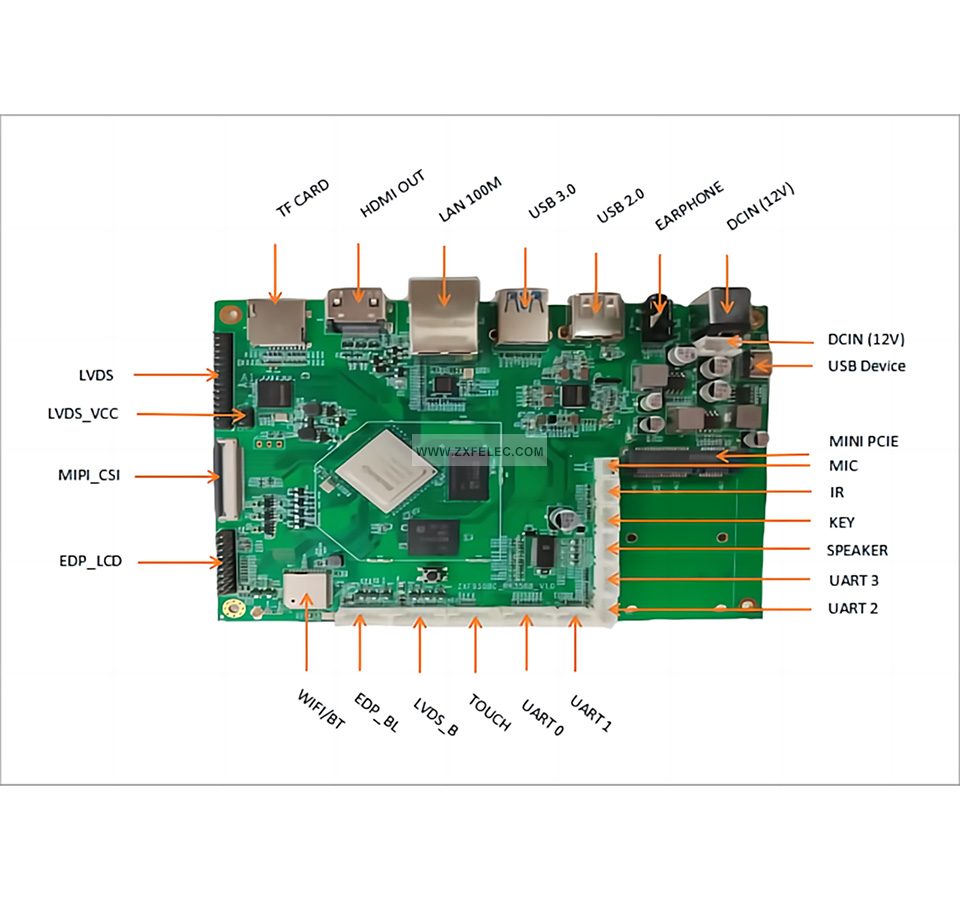

Product Function：

1. Rockchip high performance processer RK3568, quad-core cortex-A55 2.0GHz.

2. Integrated MAIL-G52 GPU, support OpenGL ES, OpenCL, Vulkan and other 3D rendering engines.

3. Embedded with high-performance 2D acceleration hardware.

4. High-performance AI accelerator NPU, compatible with mainstream architectures such as Caffe/TensorFlow.

3. H265/H264 4K@60fps video decoding, 1080P video decoding (VC-1, MPEG-1/2/4, VP8).
4. Support video post-deinterlacing, denoising, edge/detail/color optimization.
5. Support HDMI, EDP, LVDS three-screen synchronous and asynchronous display.
6. Integrated USB3.0*1 port/USB2.0*3 ports.
7. HDMI 2.0 output port, HDMI 2.0 supports max 4K@60Hz, supports HDCP1.4/2.2.
8. Dual-channel 8-bit LVDS , eDP LCD output.
9. Headphone output and built-in AMP amplifier directly to driver 2CH*15W speaker.
10. MIPI CSI sensor interface, support HDR, 3D, depth information extraction and other advanced processing.
11. TF card slot, support mass storage expansion.
12. Dual Gigabit LAN ports, support 10M/100M/1000M adaptation.
13. Built-in MINI PCIE slot, support 3G/4G/5G wireless module, with SIM card slot.

14. Built-in M.2 PCIE3.0*2 slot, support SSD harddisk mass storage.
15. Built-in WIFI6/BT5.0 two-in-one module, support WIFI 802.11b/g/n standard.
16. On-board UART, I2C, SPI, GPI and other peripheral ports for device expansion.
17. Memory configuration: LPDDR4x 2GB + EMMC 32GB. (can customizable)
18. Support headphone output with MIC.
19. Built-in fan connector for CPU cooling to improves working environment.
20. DC 12V/2A power input.

21. 6-layer high-speed PCB design.

Specification:

1	Product Name	RK3568 industrial mother-board/dev-kit
2	Productor Model	ZF-RK3568S35PR01
3	Processer chip	Rockchip RK3568, RK3568J quad-core A55 2.0GHz
4	DDR memory	LPDDR4x 2GB/4GB
5	EMMC storage	EMMC 16G/32G (Customize)
6	Display output	EDP + 2CHLVDS (resolution: 19201080)
7	HDMI output	HDMI2.0 4K@60Hz, HDCP
8	Touch Panel	Support I2C or USB touch
9	USB DEVICE	USB2.0 TYPE-C port，OTA or copy file to device
10	USB2.0 HOST	USB2.0 * 1CH
11	USB3.0 HOST	USB3.0 * 1CH
12	LINE OUT	Stereo earphone with mic input
13	Audio Amplifier	Built-in 2CH * 15W output directly driver speaker
14	Sensor	MIPI CSI 800M pixel
15	Ethernet port	100M + 1000M network port
16	M2 slot	Support, mass storage and other
17	PCI2.0	Support 3G/4G/5G wireless module with sim slot
18	UART port	UART flow control + UART 4PIN
19	I2C port	I2C 4PIN connector
20	SPI port	4 line SPI control
21	Remote controller	(option)
22	LCD Backlight	ON/OFF + PWM output
23	Wireless	WIFI6 + BLE5.0
24	Operation OS	Android12, ubuntu18.04, debian10,customize SDK

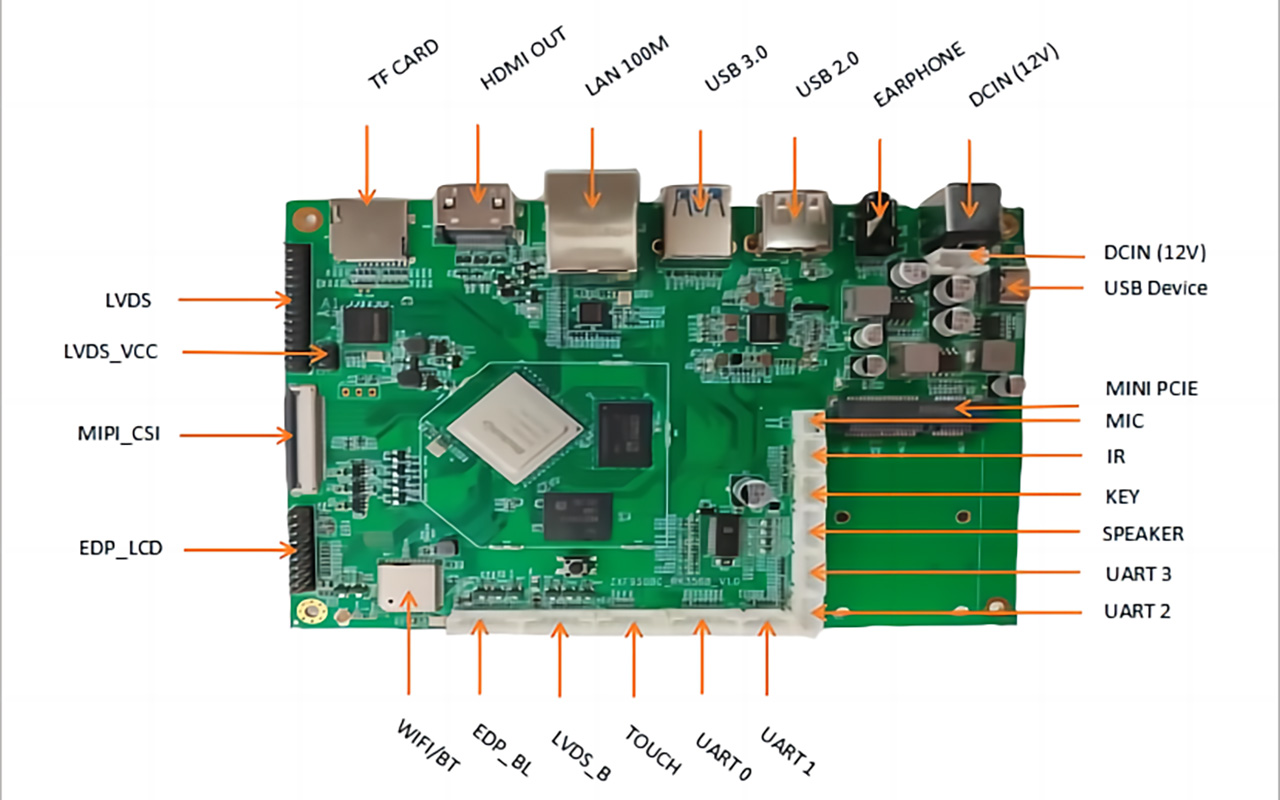

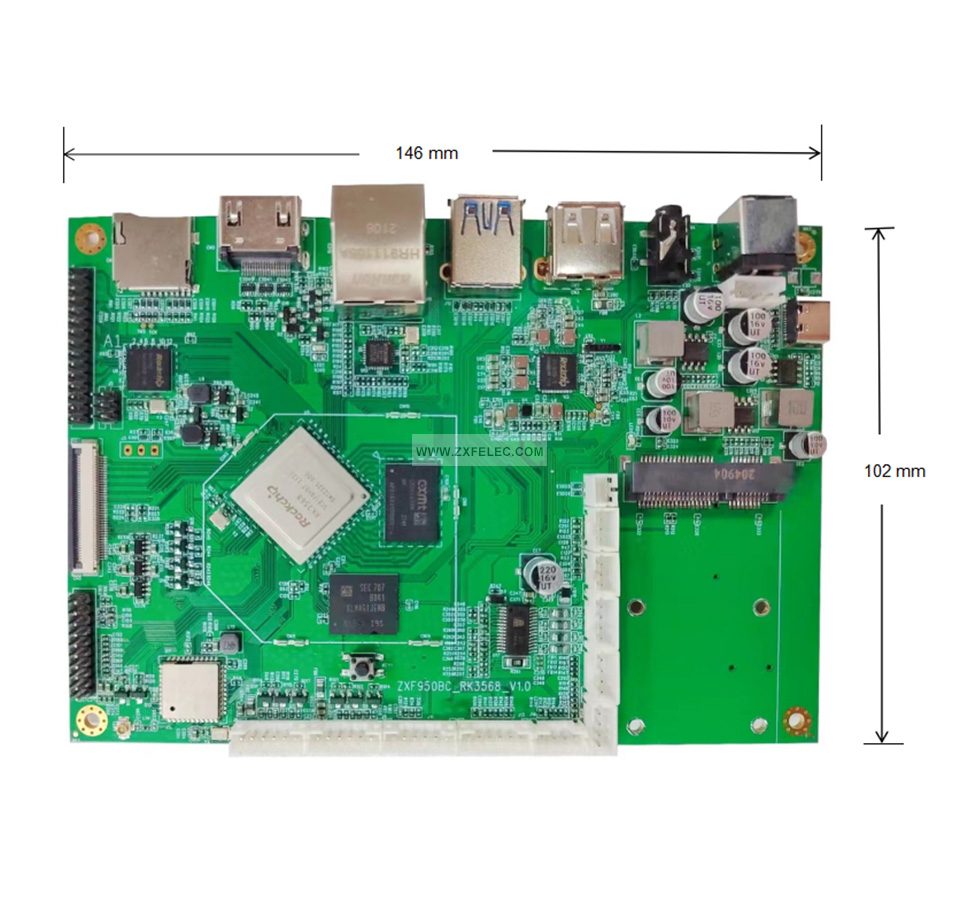

25	PCB Size	6 Layer PCB, 145(mm)(L) * 102(mm)(W) * 1.6(mm)(T)

Product application：

1. Public place/hospital information label.
2. POS cash register.
3. Information release and display.
4. Smart robots.
5. Industrial PLC display.
6. Edge computing box.
7. Video capture recorder(DVR).
8. Web Server.

9. Monitoring/security device.
10. Embedded desktop PC.

Application examples：

	Product Name: Smart Digital tag Function: As a public information display platform, it regularly displays campus information, class announcements, government affairs information and other content, publishes, receives and announces information in accordance with prepare config, and can remote updates content,device status recoder and other functions.
	Product Name: Commercial Cash Register Equipment Function: Integrated cashier, payment, bill management, scan code payment, card payment and other functions, double-sided screen display of different information, respectively display cash register information, customer bill information
	Product Name: Industrial Machinery and Equipment Function: Using the rich control ports of the product and integrated in the computing power of 1TOFS, it provides complex computing requirements for mechanical equipment, realizes the automatic production needs of equipment, and realizes technical inspection and high standard requirements in terms of production, quality inspection, product compliance and other aspects of equipment.
	Product Name: Intelligent Robot Function: The intelligent robot carries an infrared camera and is connected to the network, which is used for site inspection, production navigation, information query, information collection, and special tasks in dangerous areas.
	Product Name: Commercial Display Terminals Function: It is used for information release, inquiry and other functions in shopping malls, hotel lobbies, schools, government agencies and other places, and is equipped with network background management functions, straight line unattended, automatic management and other purposes.
