portable display

ZXFHMI portable monitor high definetion solution for notebook and mobiles and game player

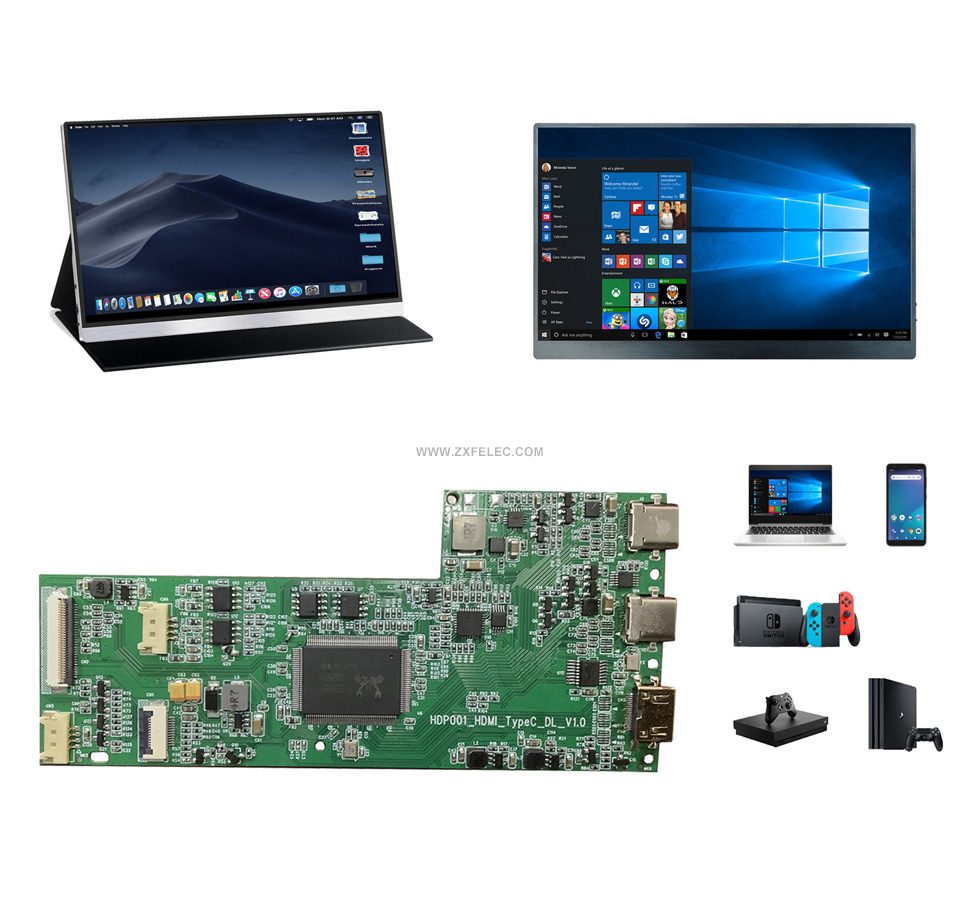

Application and Function:

1. Portable monitor.
2. Mobile screen extension.
3. Game player extension screen.

4. Notebook touch screen.

Inquery

Description Inquery

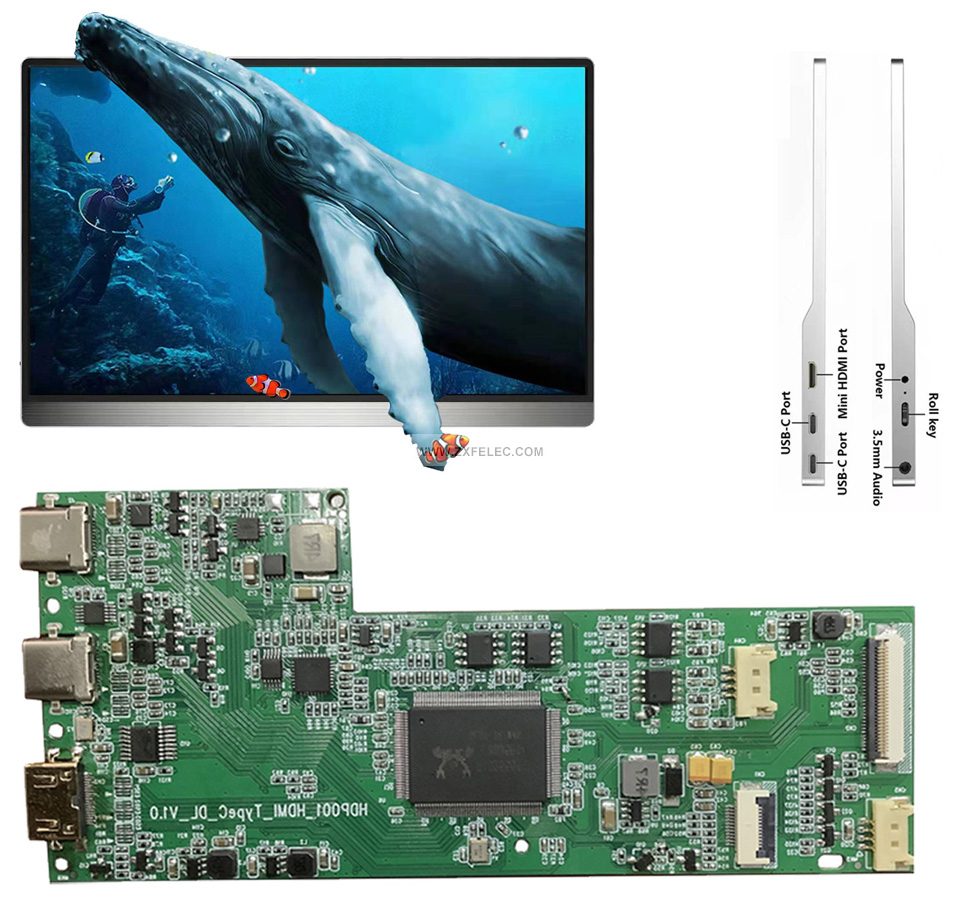

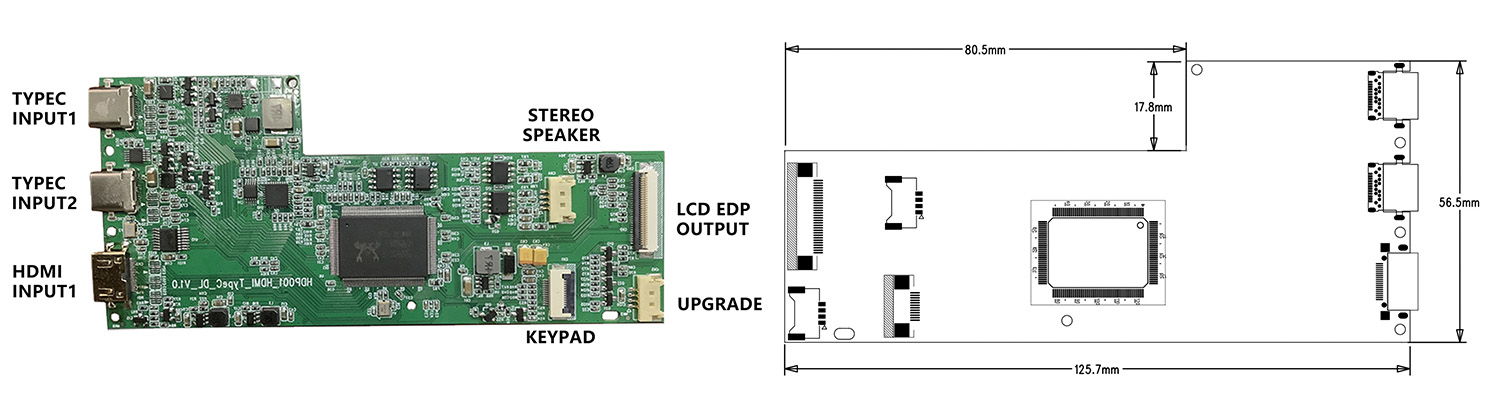

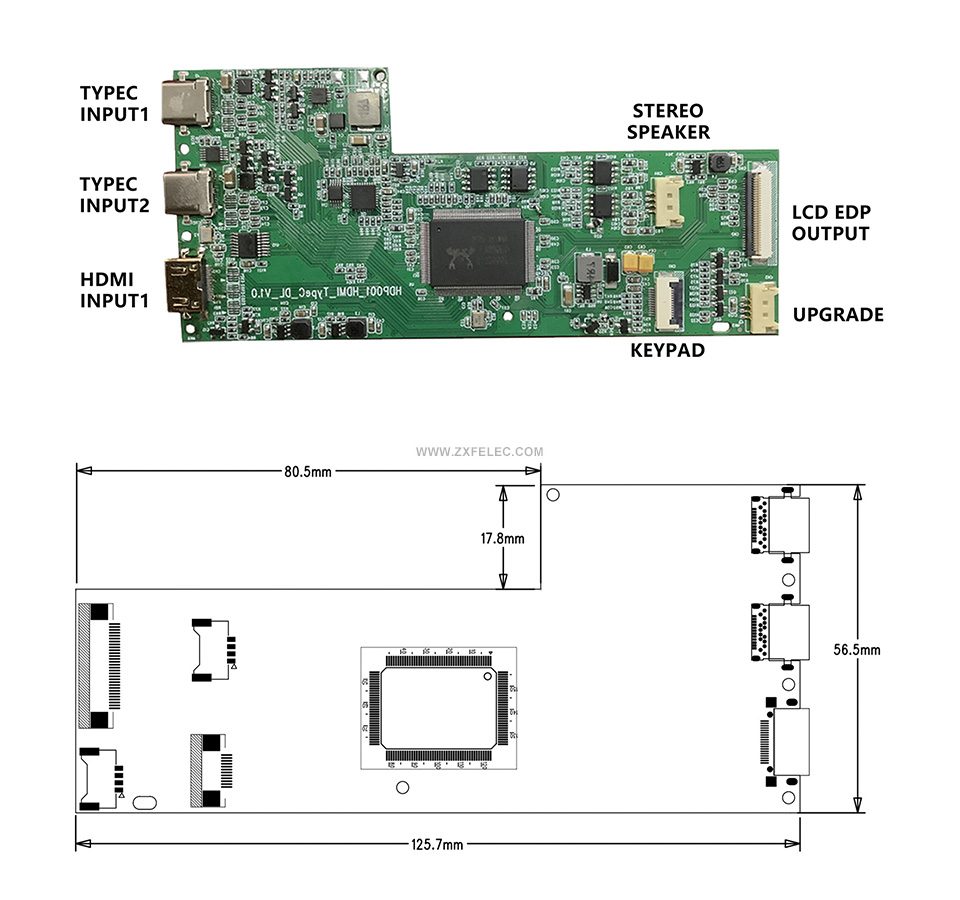

Production description:

1. MINI HDMI input port 1CH, HDMI version 1.4.

2. Dual TYPE-C input port 2CH, support blind plug, together working and mobile
charging.

3. Power key operation, easy to power down and power up.

4. Stereo headphone output.

5. Built-in stereo power amplifier, support speaker 2W@8OHM.

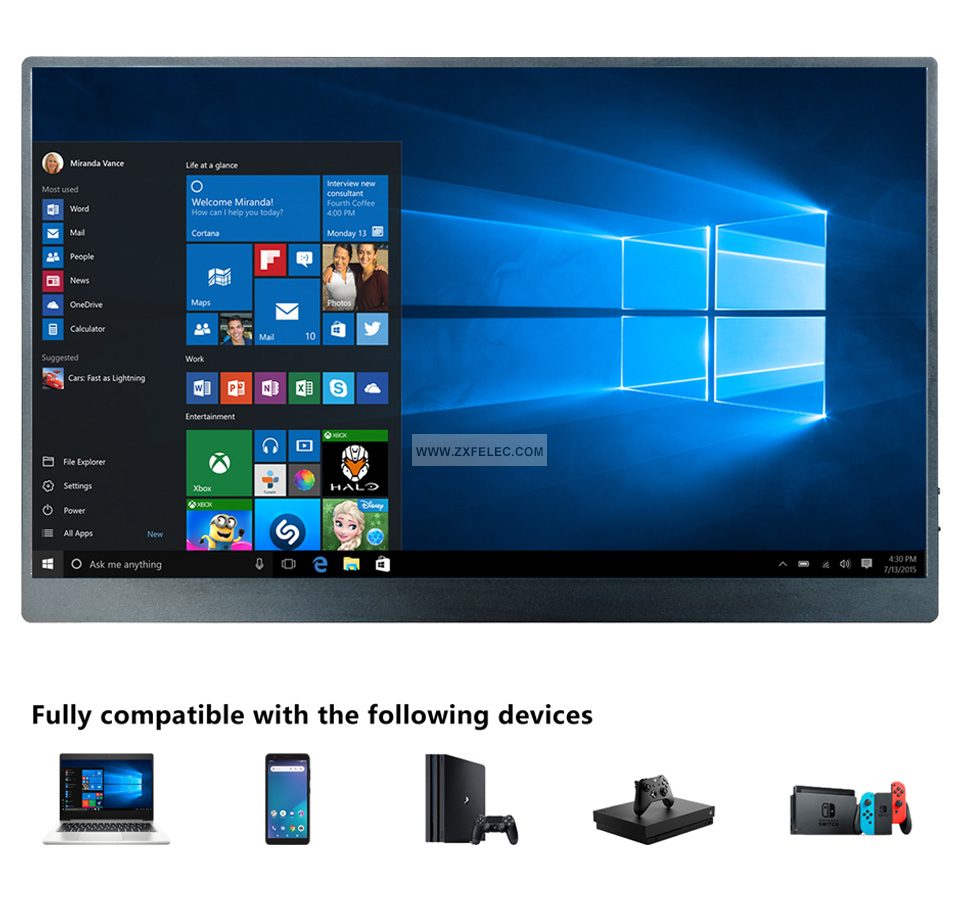

6. Compatible with mobiles, notebooks, game box and other amusement applications.

7. Compatible with Window, Mac, Android and other systems, plug and play, no need
device driver.

8. Support TouchPanel function for usb port.

9. Support EDP display, maximum support 2560*1500@60Hz display.

10. Built-in TYPE-C Power delivery.

Specification:


Product Model	FPMN156HDTY1M
HDMI Port	1CH HDMI1.4 1920*1080@60Hz
TYPE-C Port	2CH Blind plug, match display or power supply
Touch Panel	Option
Volume control	YES
Brightness control	YES
Built-in speaker	Stereo output 8OHM@2W speaker
Power supply	Built-in TYPE-C power delivery chip
Compatible devices	Notebook,Mobiles, Xbox, Nintendo Switch and other devices.
LCD MODULE	EDP 4LANE, Max resolution: 2560*1500@60Hz
Power Supply	TYPE-C power delivery
