1. In-vehicle infotainment system.
2. Wireless CarPlay & Android auto
3. CVBS monitor, Camera monitor
4. Multimedia player and digital signage
5. Smart retail shelf display
6. MP4 / MP5 player
7. Industrial HMI terminal

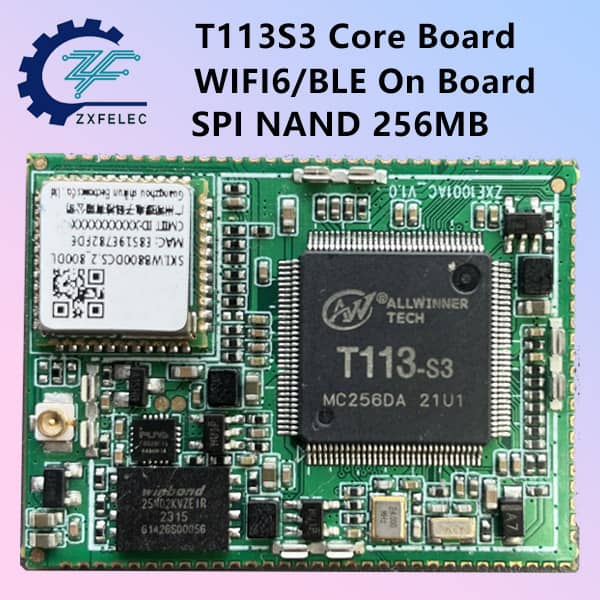

| T113S3/F133 from Allwinner Technology is a highly integrated and cost-effective multimedia application processor featuring a dual-core Arm Cortex-A7 architecture with a clock speed of up to 1.2GHz. It is designed for embedded systems requiring graphics and audio-video processing capabilities. The T113S3 supports multiple display interfaces, including MIPI-DSI, RGB LCD, and LVDS, and is widely used in automotive infotainment systems, advertising players, HMI touch terminals, and smart display devices. The chip includes a powerful audio-video codec engine supporting H.265/H.264 video decoding, JPEG hardware decoding, and audio processing. Combined with a rich set of interfaces (UART, SPI, I2C, USB, etc.) and optional NAND/eMMC storage solutions, it provides a flexible and efficient platform for multimedia applications. |

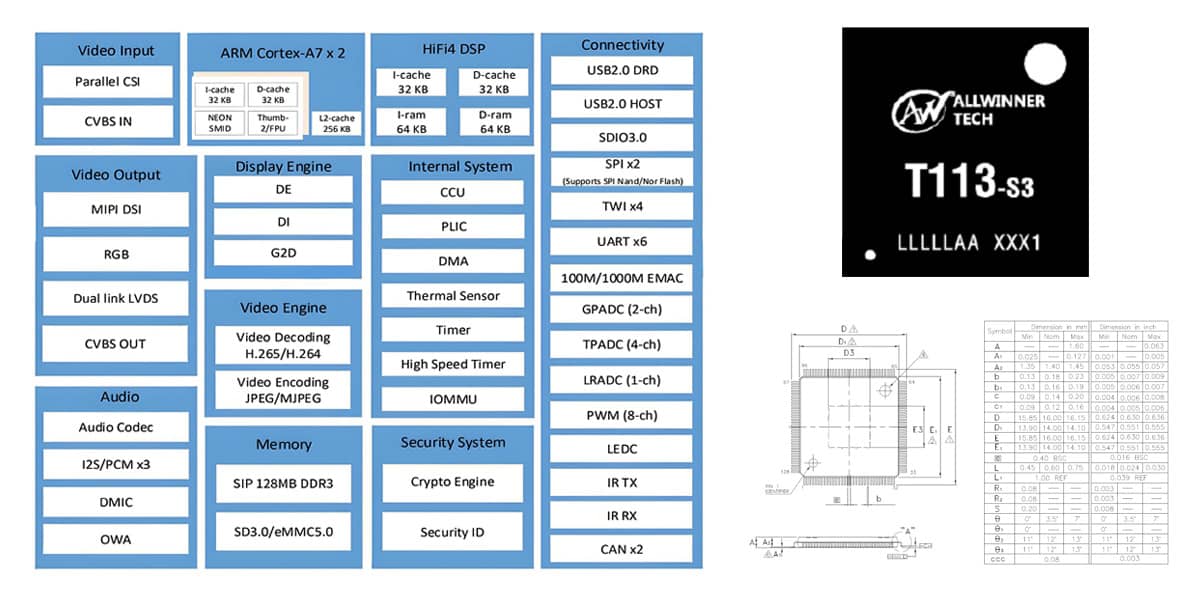

| 1. | CPU: Dual-core Arm Cortex-A7 architecture with a clock speed up to 1.2GHz, supporting NEON acceleration. |
| 2. | T113-S3: Built-in 128MB DDR3 cache; F133: Built-in 64MB DDR cache. |
| 3. | Integrated HIFI4 DSP for professional audio processing. |
| 4. | Supports full-format HD video decoding including H.265, H.264, MPEG, AVI, with a maximum of 1080P60. |
| 5. | JPEG/MJPEG hardware encoder supporting up to 1080P60. |
| 6. | SmartColor 2.0 color post-processing engine, providing excellent display quality. |
| 7. | Supports 2D graphics (G2D) hardware accelerator, including rotation, blending, and LBC decompression. |
| 8. | Display output supports RGB, MIPI, and LVDS, with a maximum resolution of 1920×1080@60Hz. |
| 9. | CVBS camera input supports automatic NTSC/PAL format detection and switching. |
| 10. | Integrated stereo audio DAC, built-in headphone digital amplifier for direct headphone output. |
| 11. | Analog audio inputs include AMIC, DMIC, Audio line-in, FM radio input, supporting up to 8 DMIC. |
| 12. | Expandable two-channel I2S audio output and integrated S/PDIF port. |
| 13. | Built-in security system supporting AES, DES, 3DES, RSA, MD5, SHA, HMAC, and other encryption modes. |
| 14. | Two USB 2.0 ports, with USB0 supporting dual-mode switching between HOST and Device. |
| 15. | Supports booting from Card, eMMC, SPI Nor, SPI NAND, and other storage devices. |
| 16. | SD/MMC controller supports SDIO 3.0 high-speed and such as SD NAND, Card, and eMMC storage device. |
| 17. | Rich peripheral interfaces: 2×SPI, 6×UART, 4×I2C, 8×PWM, 5×ADC, etc. |
| 18. | Supports watchdog timer, RTC (real-time clock), and secure boot mechanisms. |
| 19. | Low power design suitable for long-term embedded operation. |
| 20. | Operating systems: T113-S3 uses Tina Linux; F133 uses Melis RTOS, Support customize OS for customer. |
| 21. | Chip package: LQFP128 (16×16 mm), mature and stable. |
| 22. | Widely used in automotive infotainment systems, advertising players, industrial HMI, video doorbells, smart home devices, and more. |
| 1. | Automotive infotainment system: Leveraging the T113S3’s display driving capabilities and audio-video codec engine, it enables the construction of high-definition large-screen infotainment systems supporting wireless CarPlay and Android Auto, offering low-latency video synchronization and smooth touch feedback—ideal for integrated in-vehicle information and entertainment solutions. |
| 2. | Smart advertising players: Supporting H.265/H.264 HD video decoding and multiple display interfaces (LVDS/MIPI/RGB), capable of driving various commercial advertising screens, suitable for shopping malls, subways, office buildings, etc., enabling scheduled playback, remote management, and multi-screen linkage. |
| 3. | Retail electronic shelf labels (ESL) or product display boards: Paired with high-definition LCD screens and wireless connectivity to display product names, prices, QR codes, and promotional information, supporting remote updates and local caching—perfect for convenience stores, supermarkets, and unmanned retail environments. |
| 4. | HMI human-machine interface terminals: Combining touch input and graphical output, suitable for industrial automation equipment, PLC control panels, and electric vehicle dashboards; provides stable UI display and fast response to enhance user interaction and control efficiency. |
| 5. | Multifunctional MP4/MP5 players: Integrated efficient image and video decoding hardware supporting mainstream audio-video formats; can serve as a local player or streaming terminal, ideal for low-cost, high-performance portable entertainment devices. |
| 6. | Digital photo frames/cloud album devices: Capable of photo slideshows, short video playback, and special effects processing; supports remote image push and sharing—used as family digital albums, office welcome screens, or community display terminals. |
| 7. | Smart fitness equipment information screens: Embedded touchscreens and network modules display real-time data such as exercise movements, heart rate, and calorie consumption; supports multimedia course playback—widely applied in treadmills, stationary bikes, and other fitness equipment. |
| 8. | Smart home control panels: Designed for home centralized control, supporting unified management of lighting, curtains, air conditioning, security, and audio-video systems; enables convenient operation via graphical interfaces and supports multi-protocol linkage. |
 |
Product Name: CVBS Monitor
Product Features: The CVBS monitor supports connection to traditional analog CVBS cameras, enabling local video display and monitoring. Equipped with built-in Wi-Fi, 4G, or 5G networks, it encodes video into RTSP streams for remote real-time monitoring. The device also supports anomaly detection and alarm notifications, making it ideal for upgrading analog video systems in parking lots, construction vehicles, security systems, and similar scenarios. |
 |
Product Name: Retail Electronic Shelf Label (ESL)
Product Features: The retail ESL integrates price display, promotional advertising, and product information, supporting various display formats including images, text, and video. Content can be quickly updated via a remote management platform. Featuring high-definition display, strong visual appeal, and low maintenance costs, it is widely used in supermarkets, convenience stores, counters, and other retail environments. |
 |
Product Name: Network Video Advertising Player
Product Features: The network video advertising player supports remote content pushing and updates, with device status monitoring and anomaly alarm functions. It allows customized display content and playback modes according to different scenarios. Equipped with a built-in display performance feedback mechanism, it ensures more efficient and precise advertising delivery. It is widely used in shopping malls, subways, chain stores, and other locations. |
 |
Product Name: Smart Lightbox Advertising Display
Product Features: Compatible with various types of LED and LCD screens, supporting flexible editing of advertising content and diverse playback modes. Features remote content publishing and updating capabilities, making it suitable for shopping malls, bus stops, chain stores, and other application scenarios. |
 |
Product Name: HMI (Human-Machine Interface) Terminal
Product Features: Equipped with a high-performance graphics processor, compatible with mainstream GUI frameworks such as QT and LVGL, ensuring smooth interface rendering. Supports extended communication interfaces including Ethernet, RS485, and RS232, meeting the human-machine interaction needs in industrial control, smart devices, and various other application scenarios. |
 |
Product Name: Smart Fitness Equipment Display Screen
Product Features: Integrated into fitness equipment such as treadmills, it provides real-time display of speed, heart rate, calorie consumption, and other data. Supports touch operation and multimedia playback. Equipped with Wi-Fi connectivity for remote course delivery, exercise data synchronization, and user interaction, enhancing the overall fitness experience. |
