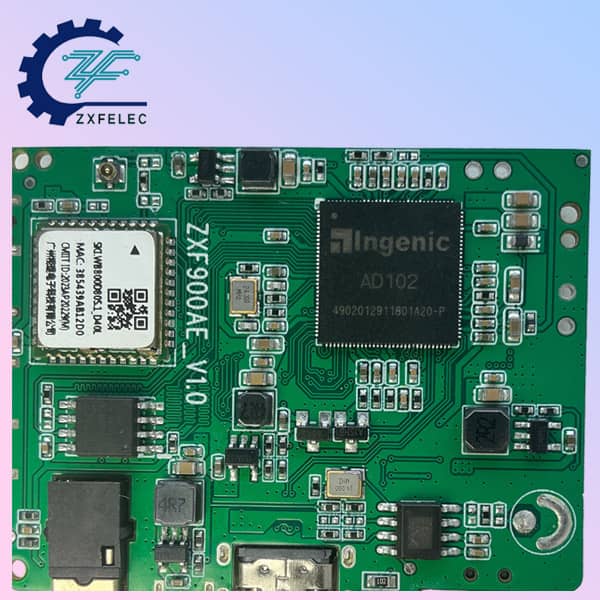

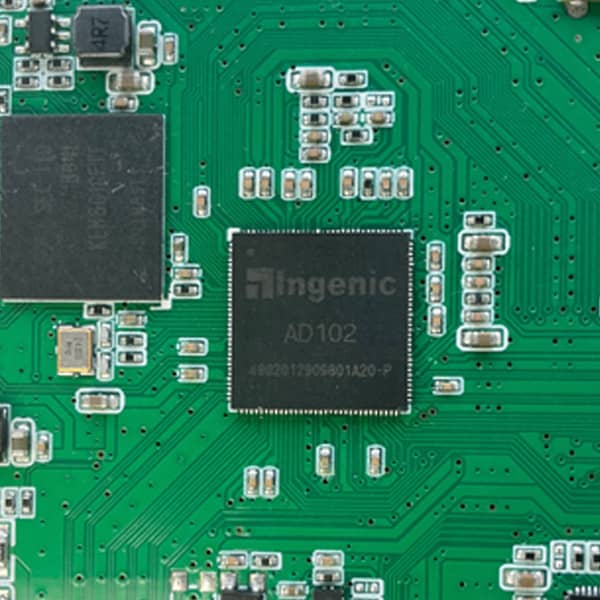

| AD102 is a high-performance, highly integrated application processor developed by Ingenic, based on the XBurst®2 dual-core MIPS32 architecture with support for MESA instruction set acceleration. It integrates an H.264 video decoder, JPEG codec, and a 2D graphics engine for smooth video playback and efficient image processing. Supporting RGB, MIPI-DSI, and I80/QSPI display interfaces, AD102 can flexibly adapt to various display panels. The chip also integrates a comprehensive security system and rich peripheral interfaces, delivering excellent reliability, scalability, and system security. With its high integration, low power consumption, and strong multimedia capabilities, AD102 is ideally suited for smart HMI systems, industrial control panels, consumer electronics, and IoT display devices. |

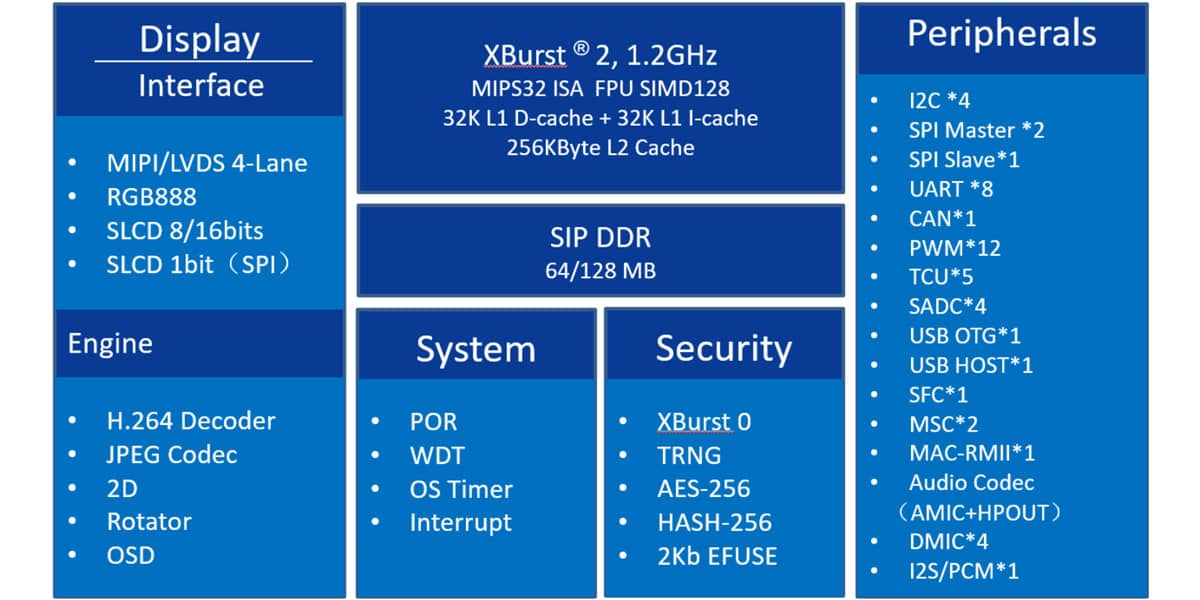

| 1. | CPU: CPU: XBurst®2, dual-core 1.2GHz, high-performance floating-point unit (FPU), compatible instruction set architectures: MIPS 128-bit MSA and Ingenic 128-bit MXA. |

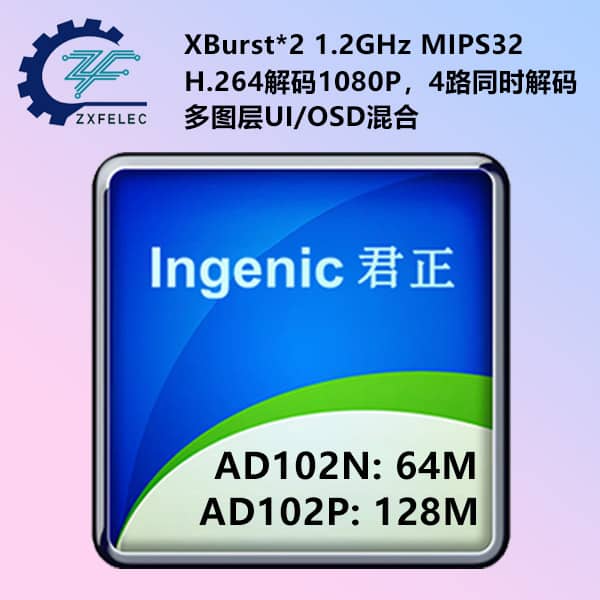

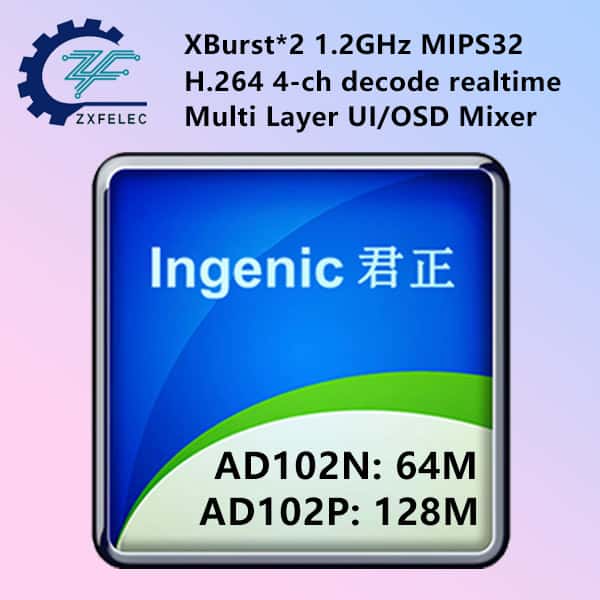

| 2. | Memory: AD102P integrates 128MB DDR3, AD102N integrates 64MB DDR. |
| 3. | H.264 Video Decoding: Supports up to 1920×1080@60Hz. |
| 4. | JPEG Hardware Decoding: Baseline, maximum image resolution up to 8192×8192. |
| 5. | JPEG Hardware Encoding: Baseline, maximum image resolution up to 8192×8192; input formats supported: ARGB, RGB888, NV12, YUV422, YUV444, etc. |
| 6. | 2D Graphics Hardware Engine: Supports rotation, mirroring, rectangle fill, color space conversion, and blending. |
| 7. | Display Output: Supports RGB/MIPI-DSI/I80, maximum resolution up to 1920×1080@60Hz. |
| 8. | Audio Codec: Integrated codec with MIC input and line output. |
| 9. | DMIC Input: Supports 2× digital microphones (DMIC). |
| 10. | Storage: Supports SPI NAND, SPI NOR, and eMMC. |
| 11. | SD/SDIO/MMC: Supports SDIO2.0/eMMC4.3, 1-bit/4-bit modes, clock speed up to 50MHz. |
| 12. | Security System: Built-in AES, DES, 3DES, RSA, MD5, SHA, HMAC, supports secure boot mode. |
| 13. | USB: 2× USB2.0, USB0 configurable as HOST or Device. |
| 14. | Boot Options: Supports boot from eMMC, SPI NOR, SPI NAND. |
| 15. | Peripheral Interfaces: 2× SPI, 8× UART, 4× I2C, 12× PWM, CAN2.0, SAR ADC, etc. |
| 16. | Low Power Design: Optimized for long-term embedded operation. |
| 17. | Operating System: Supports Linux and RTOS. |
| 18. | Package: LQFP128, 16×16 mm, stable and mature. |
| 1. | Indoor Video Doorbell: Built-in HD display and two-way audio communication, allows residents to check visitors in real time via smartphone or tablet and supports remote unlocking. Features low power consumption and wireless connectivity, widely used in homes, apartments, and offices. |
| 2. | Digital Photo Frame / Cloud Album Device: Supports photo slideshow, short video playback, and visual effects, with remote image pushing and sharing. Can be used as a family digital album, office welcome screen, or community display terminal. |
| 3. | Retail Electronic Shelf Label (ESL) / Product Display Board: Equipped with an HD LCD screen and wireless networking, displays product names, prices, QR codes, and promotions. Supports remote updates and local caching, ideal for convenience stores, supermarkets, and unmanned retail scenarios. |
| 4. | HMI Terminal: Combines touch input with graphical output for industrial automation equipment, PLC control panels, and EV dashboards. Provides stable UI display and fast response, improving user interaction and control efficiency. |
| 5. | Smart Home Control Panel: Designed for home central control, enabling unified management of lighting, curtains, air conditioning, security, and AV systems. Offers intuitive graphical operation and supports multi-protocol integration. |
 |
Product Name: 86-Type Display Panel
Function: The 86-type display panel is a smart terminal with a standard 86-box size, integrating a high-definition touch screen and a low-power processing core. It supports information display, status indication, and human-machine interaction control. With multiple communication interfaces and wireless connectivity, it is easy to install and suitable for smart home, building intercom, access control, and industrial control panel applications. |
 |
Product Name: Retail Electronic Shelf Label
Function: The retail electronic shelf label combines price display, promotional advertising, and product information, supporting various formats such as images, text, and video. Managed remotely via a platform for quick content updates, it offers high-definition display, strong visual appeal, and low maintenance costs. Widely used in supermarkets, convenience stores, and retail counters. |
 |
Product Name: Cloud Digital Photo Frame
Function: The cloud digital photo frame is a network-based smart frame that supports receiving and syncing photos or videos via Wi-Fi/cloud platforms. Users can remotely upload and manage content through a mobile app. Equipped with a high-definition display, it supports automatic slideshow and scheduled power on/off, suitable for home, gifting, and commercial display scenarios, providing a convenient and warm image-sharing experience. |
 |

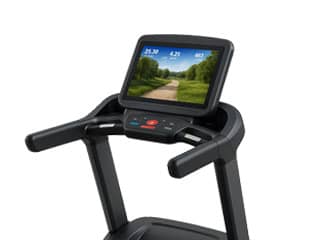

Product Name: Smart Fitness Equipment Information Screen
Function: Integrated into fitness equipment such as treadmills, it displays real-time data including speed, heart rate, and calories burned, supporting touch operation and multimedia playback. With Wi-Fi connectivity, it enables remote course delivery, exercise data synchronization, and user interaction to enhance the fitness experience. |
