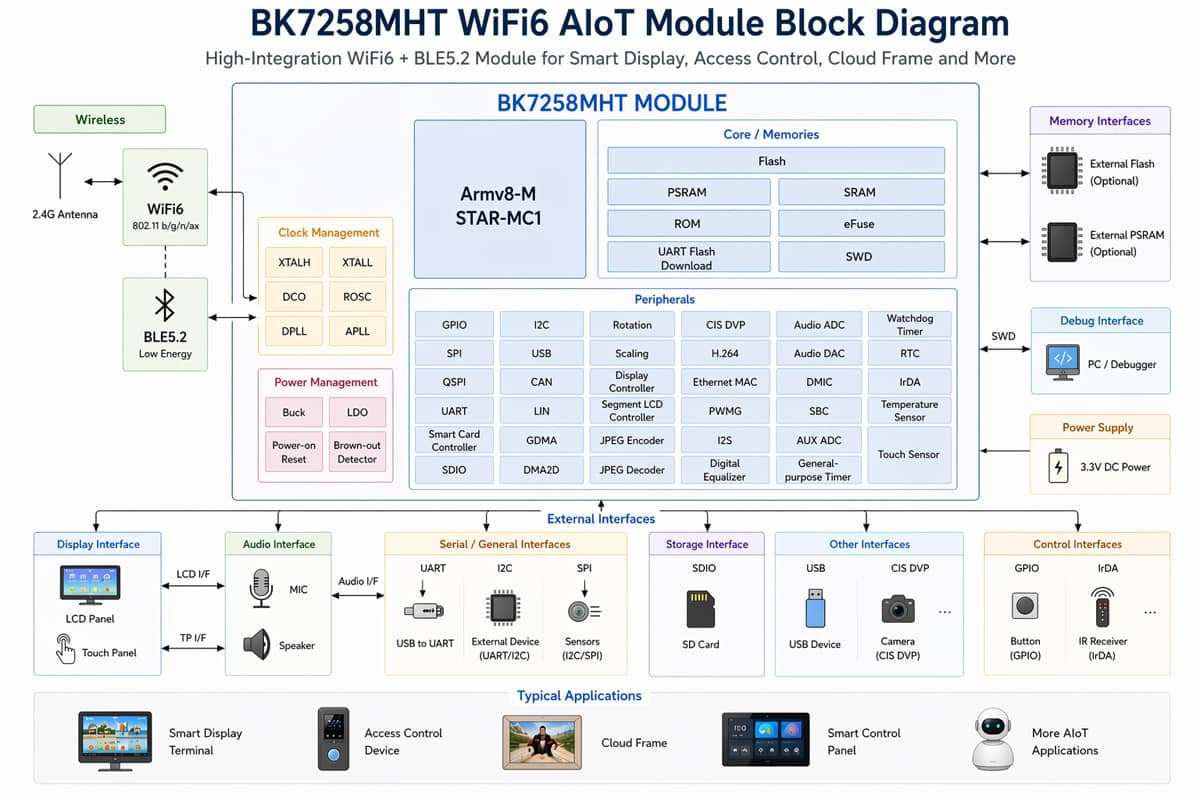

BK7258MHT AIoT Smart Module | Wi-Fi 6 (2.4 GHz) + BLE + H.264 Encoding + JPEG Decoding + LCD Touch Display + Voice Interaction Integrated Solution, Ideal for Smart Voice Terminals

Product Description

     The BK7258MHT is a high-performance AIoT core module based on the Beken BK7258 chipset, featuring a 32-bit ARM Cortex-M33F core up to 480 MHz with FPU and DSP support for strong processing capability. It integrates multimedia functions including H.264 encoding, JPEG codec, and DMA2D acceleration for efficient image processing and smooth UI rendering, along with a built-in LCD controller supporting RGB, QSPI, and 8080 interfaces. With onboard 2.4 GHz Wi-Fi 6 and Bluetooth LE 5.4, it delivers stable high-speed connectivity and low-power communication, while also supporting voice interaction and audio processing such as AEC and microphone input for local voice control. Highly integrated and power-efficient with rich peripheral expansion, it is ideal for smart voice terminals, industrial HMIs, home appliance control panels, smart door devices, clocks, weather displays, and other AIoT applications with display and voice functionality.

Base Specifications

Key Features / Specifications

• 1. Beken BK7258 high-performance SoC, dual-core ARMv8-M (Cortex-M33), up to 480 MHz.
• 2. Built-in FPU, DSP, and TrustZone for high performance, security, and low power.
• 3. 8MB NOR Flash + 16MB PSRAM onboard, with external expansion support.
• 4. DMA2D engine for image copy, fill, blending, and format conversion.
• 5. H.264 and JPEG encoding, up to 720P input.
• 6. JPEG hardware decoding with YUV444 support.
• 7. Hardware image rotation and scaling for UI processing.
• 8. 8-bit CMOS DVP interface, up to 100MP input.
• 9. LCD controller supporting RGB / I80 / QSPI, up to 1024×600.
• 10. Dual AMIC with AEC and voice capture.
• 11. Integrated audio ADC / DAC / amplifier, supports I2S / DMIC.
• 12. Built-in MAC, requires external PHY.
• 13. High-speed USB with OTG support.
• 14.Touch key input support, up to 16 GPIO touch keys
• 15. RTC with ultra-low power mode (<3µA).
• 16. Rich peripherals: PWM / SPI / I2C / IR / SAR ADC / GPIO.
• 17. Multiple UART interfaces for debug and communication.
• 18. 2.4GHz Wi-Fi + BLE with low-power operation.
• 19. Hardware security: AES / DES / 3DES / RSA / SHA-1 / SHA-256, secure boot.
• 20. Low-power design for industrial and IoT applications.
• 21. OS: Beken ARMINO RTOS.

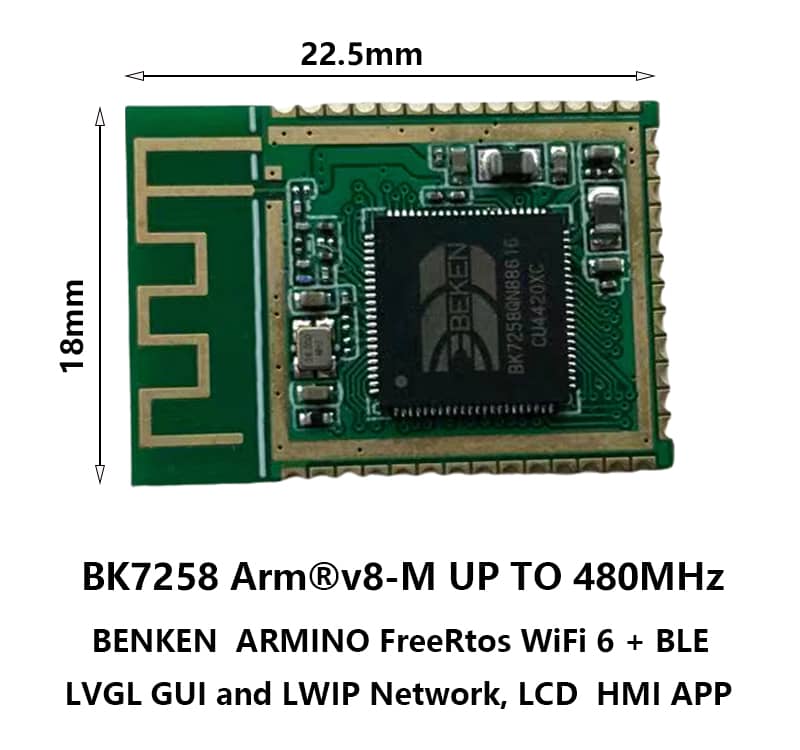

• 22. Size: SOM stamp-hole, 18 × 22.5 mm

Product Applications

• 1. Kids Smart Alarm Clock: Supports voice interaction, animated display, and scheduling for daily reminders.
• 2. Home Appliance Control Panel: Touch display with voice control for device management and status monitoring.
• 3. Weather Display Terminal: Real-time weather updates via Wi-Fi with visual data display.
• 4. Voice Interaction Terminal: Local voice control with audio processing for smart control systems.
• 5. Video Door Devices: Visual door lock, smart peephole, and doorbell with video monitoring and intercom.
• 6. Industrial HMI: Real-time data visualization and control interface for industrial equipment.
• 7. Smart Kitchen Display: Recipe display, voice control, and connected home interaction.
• 8. Handheld Voice Terminal: Portable device with voice input and cloud-based translation or services.
• 9. Wi-Fi Camera Terminal: Video capture and wireless transmission with H.264 support (up to 720P).
• 10. Video Intercom System: Local video preview and remote communication for access control and security.

Typical Applications

	Product: Kids Smart Alarm Clock Features: Supports voice interaction and scheduled reminders, including alarm setup, voice playback, stories/music, and animated display. Wi-Fi enables automatic time sync and content updates, ideal for kids and home use.
	Product: Weather Display Screen Features: Retrieves real-time weather data via Wi-Fi, with graphical display of temperature, humidity, weather, and time. Supports cloud integration for automatic updates, suitable for home and outdoor monitoring.
	Product: Video Door Lock Features: Integrates camera and display for live visitor preview and local viewing. Wi-Fi enables remote monitoring and interaction, with voice prompts for enhanced user experience and security.
	Product: Smart Peephole Features: Captures door images with on-screen display, supports photo storage and remote viewing via wireless connection, with notifications for home security.
	Product: Digital Badge Features: Supports image/animation display and simple interaction for personalized content, branding, and events. Content can be updated via Wi-Fi or locally.
	Product: E-Ink Photo Frame Features: Supports image display with scheduled refresh. Retrieves images from the cloud via Wi-Fi, and leverages the low-power BK7258MHT module for ultra-long standby and energy-efficient static display—ideal for home photo frames and digital photo display applications.
