Embeded Processor

V100 Actions MP4/MP5 multimedia processor,built-in audio and video decoding engine, supports various LCD displays, and offers a high-performance, low-cost solution for video advertising machines and media players.

Application and Function:

1. Photo frame / advertising machine.

2. Children's learning machine.

3. Greeting card video player.

4. Loudspeaker / speaker application.

5. Development SDK kit for customization.

Contact Sales

Download

Description Contact Sales

V100 Actions MP4/MP5 multimedia processor,built-in audio and video decoding engine, supports various LCD displays, and offers a high-performance, low-cost solution for video advertising machines and media players.

Product Description:

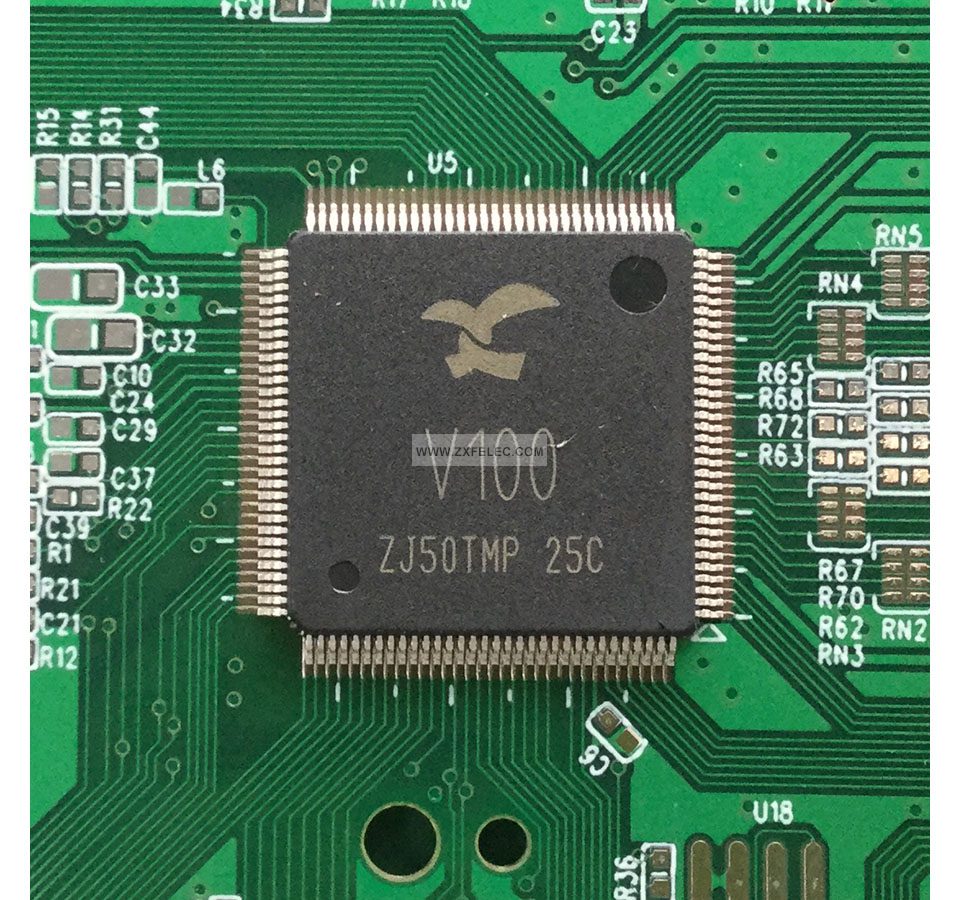

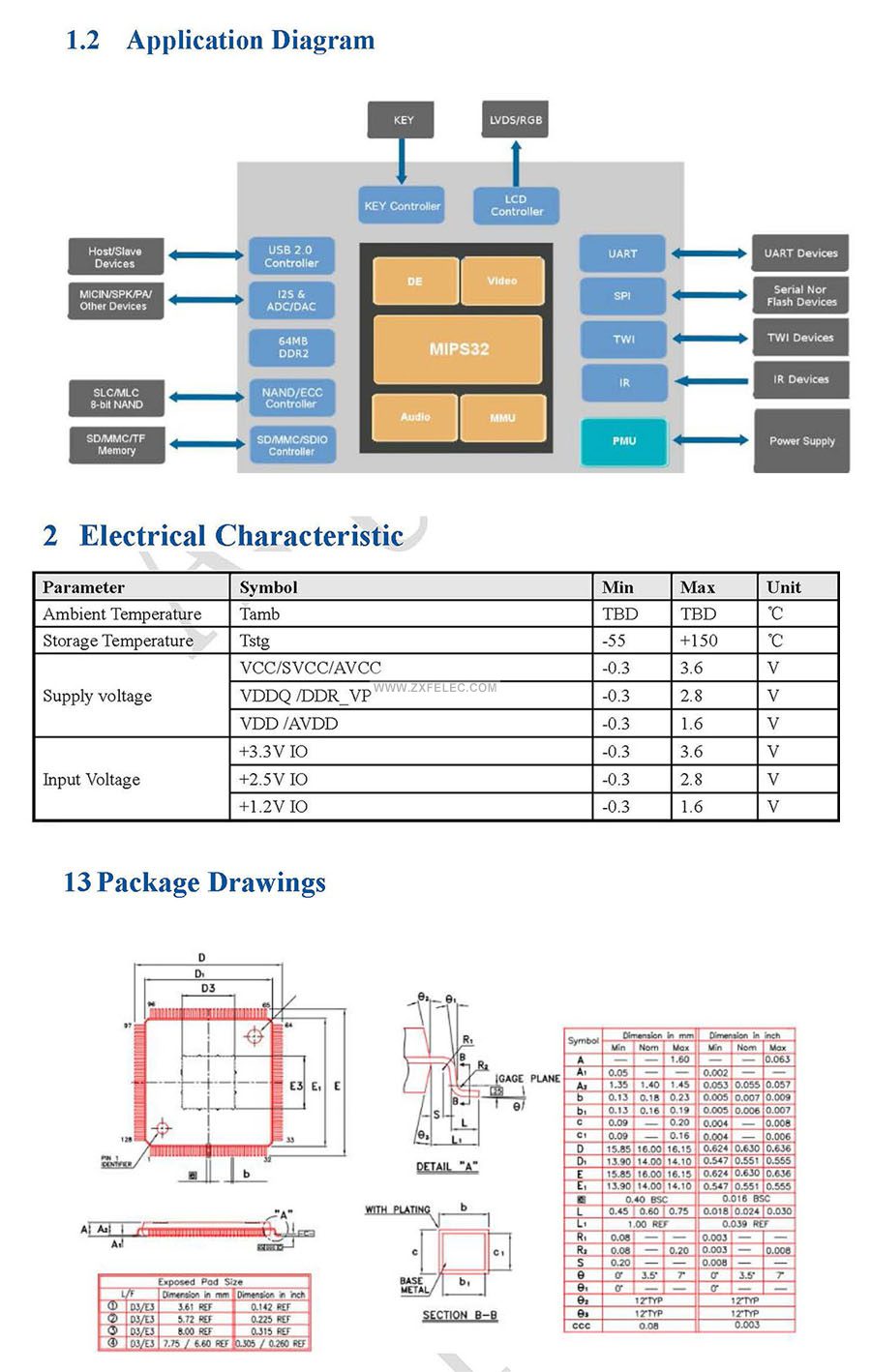

V100 is a multifunctional, high-performance, low-power, and highly integrated multimedia processor from Actions Technology, primarily designed for applications such as video advertising displays, MP4/MP5 players, and digital photo frames. It integrates an MIPS32 processor along with a compact, integrated video engine, display subsystem, and audio engine, delivering diverse advertising display effects. The V100 supports video decoding up to 1080p, features DDR2/DDR1 DRAM, SPI NOR, and NAND flash controllers with up to 40-bit ECC, and incorporates both RGB and LVDS LCD interfaces. Its rich connectivity options include USB 2.0, SDIO, and other serial interfaces, enhancing system expandability. Multiple built-in power management regulators make it an ideal high-performance, low-cost solution for video advertising player applications.

Functional Features:

1. Integrated high-speed 32bit MIPS processor, supporting DSP ASE instruction extension.
2. Full format 1080P30 video decoding such as rmvb/avi/h.264/mpeg.
3. Jpeg/bmp/png and other formats of picture decoding, max resolution 8192*8192(pixel) by hardware decoder.
4. MP3, wma, AAC, APE and other audio decoding.
5. Integrated cpu/rgb/lvds LCD interface, maximum output Resolution support 1366*768.
6. SPI nor/nand compatible design, and NAND supports 40bit ECC.
7. Compatible with sd/sdhc/mmc memory card.
8. Compatible with USB host/device.
9. Support microphone /line audio input.
10. Support G2D accelerator.
10. Support DDR1 and DDR2 memory.
11. Support WiFi module to realize network application.
12. Operating system: ucos/linux.
13. Package: lqfp128-epad, size: 16 * 16mm.

Application Examples:

	Product Name: Smart Cloud Photo Frame Function Features: Supports playback of images, videos, and music files; Wi-Fi connectivity for integration with Tuya Smart App, Juhong, Fremo, and other smart cloud photo frame platforms; enables file sharing and interaction between mobile phones, computers, and the cloud photo frame.
	Product Name: Digital Photo Frame Function Features: Image, video, and music playback; automatic slideshow with transition effects; scheduled power on/off; clock and alarm functions; human motion sensor for automatic power on/off.
	Product Name: Video Karaoke Machine Function Features: Image, video, and music playback; automatic slideshow with transition effects; large buttons for easy operation; quick play function; suitable for leisure and entertainment for seniors and children.
	Product Name: Digital Signage Player Function Features: Loop playback of video, images, and other content files; insertion playback; Wi-Fi connectivity for remote content scheduling, device monitoring, and control.
