LCD Module

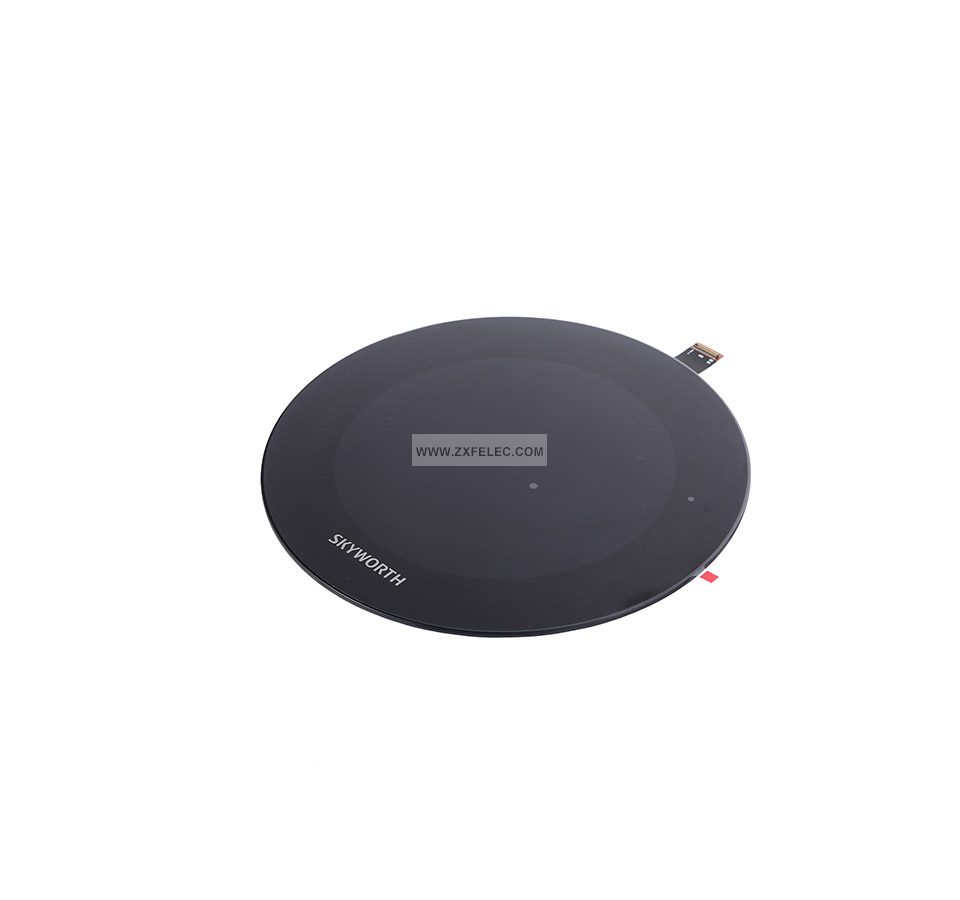

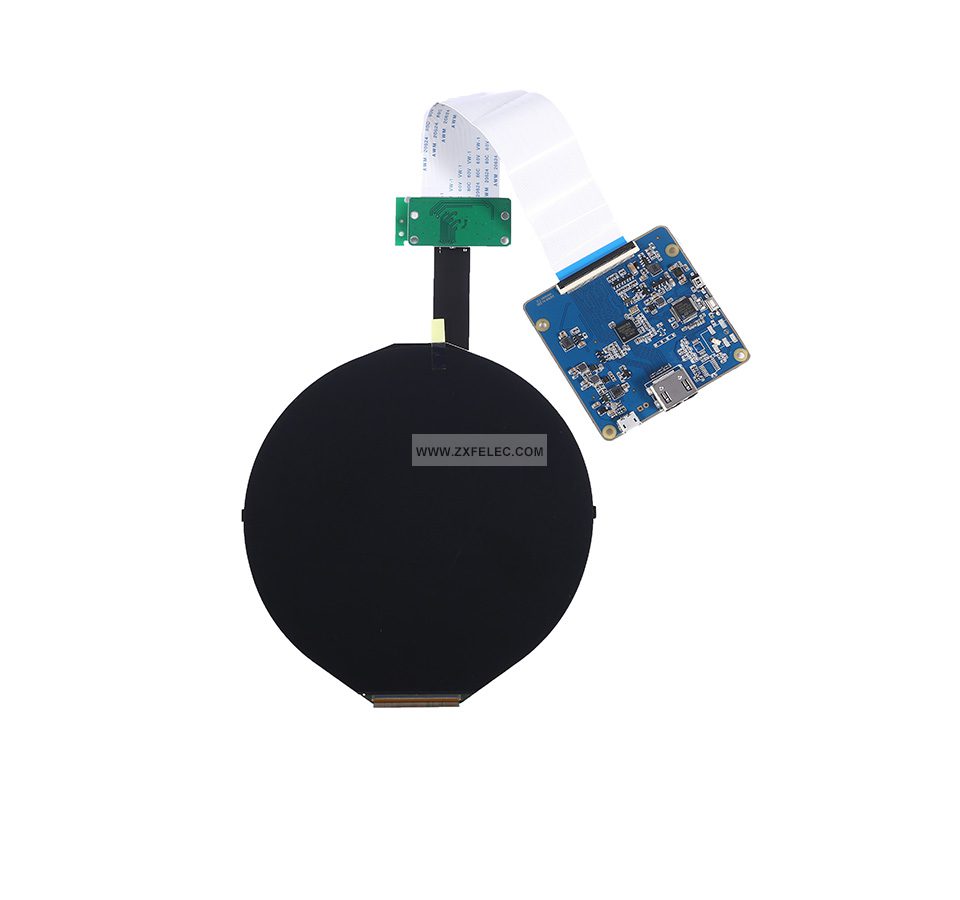

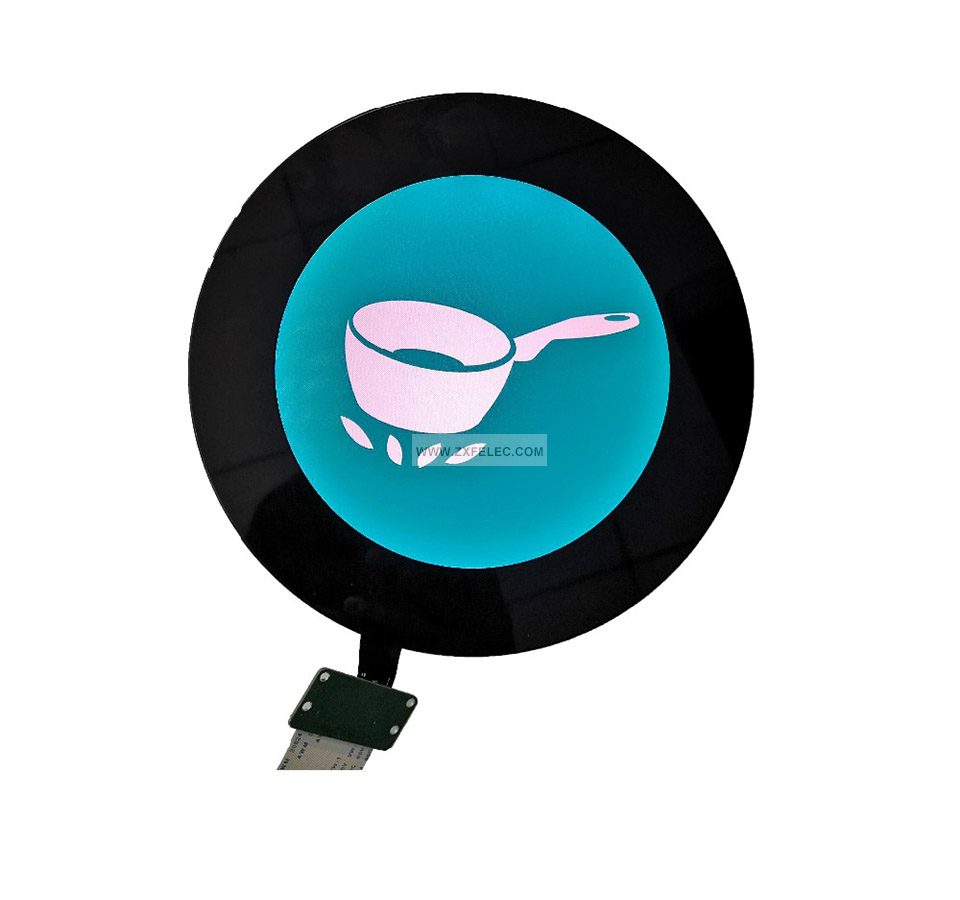

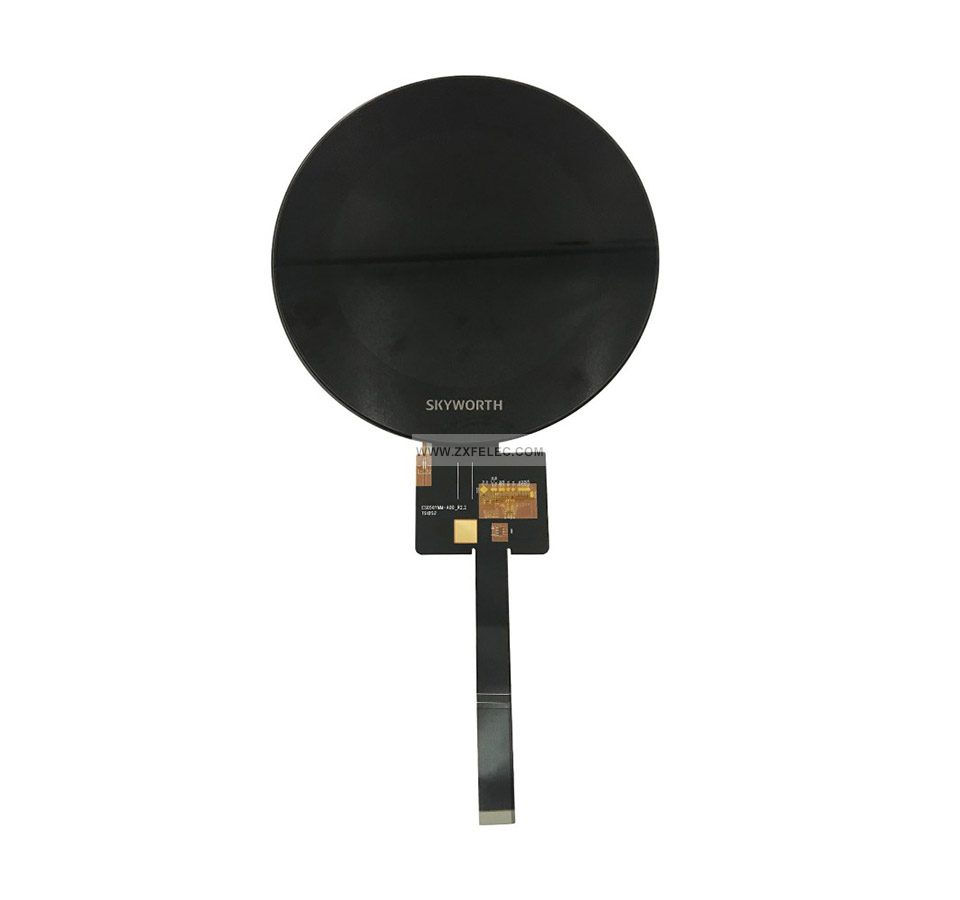

LCD module circle 5inch

Application and Function:

1. Type: TFT LCD PANEL.

2. Active display area: 5 inch(Diameter: 127mm).

3. Resolution: 1080*1080(pixel).

4. Brightness: 400CD/M2.

5. Display mode: Standard black.

6. Viewing Angle: 80/80/80/80.

7. Interface Type: MIPI.

8. Operating temperature: - 20 - 60°C.

9. Application: Smart watch, photoframe.

Contact Sales

Description Contact Sales

Item	Specification
Panel size	5 inch
Resolution	1080 * RGB * 1080
Brightness	400 cd/㎡
Active area	127.008(H) X 127.008(V) mm
Dimensional outline	136.531 X 132.208 X 1.98 mm
Display mode	SFT, Normally black, Transmissive
Viewing angle	80/80/80/80 (Typ.)(CR≥10）

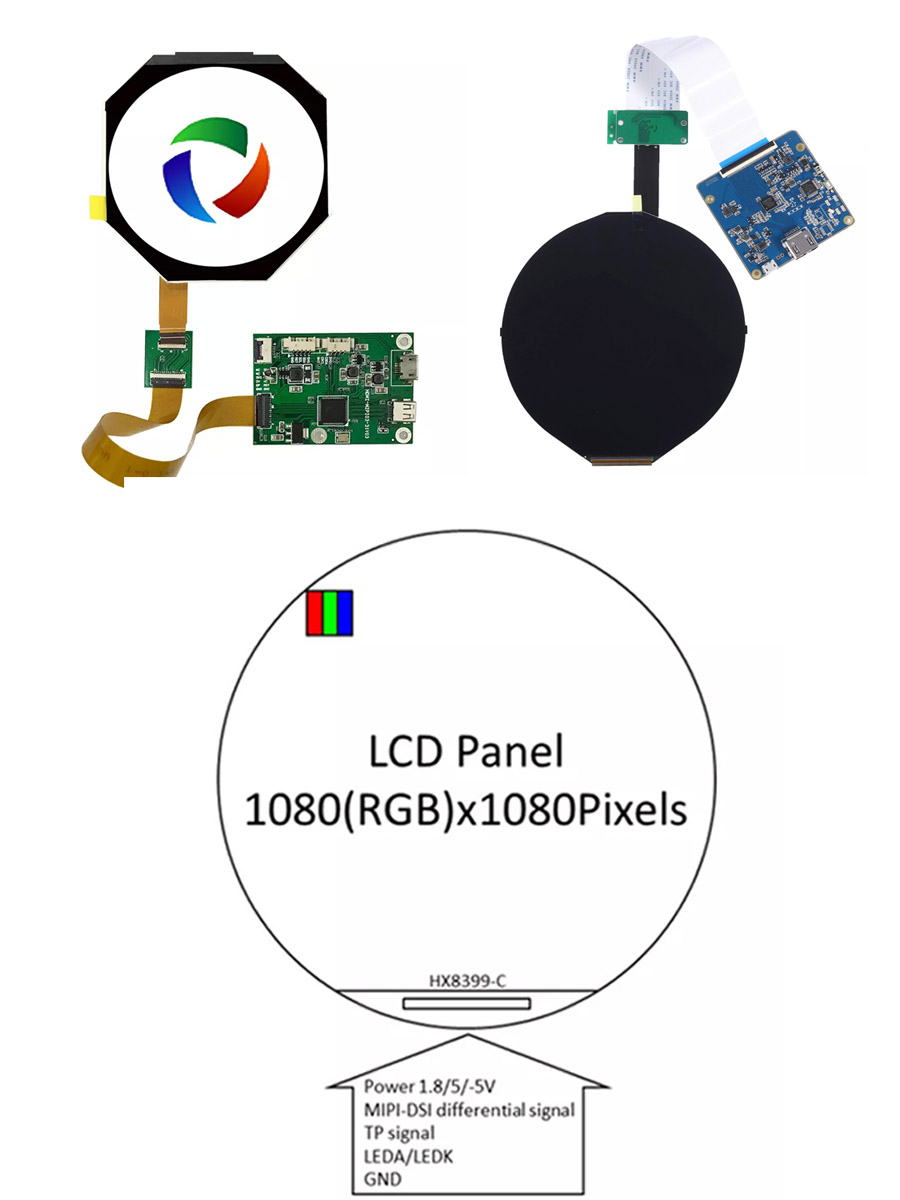

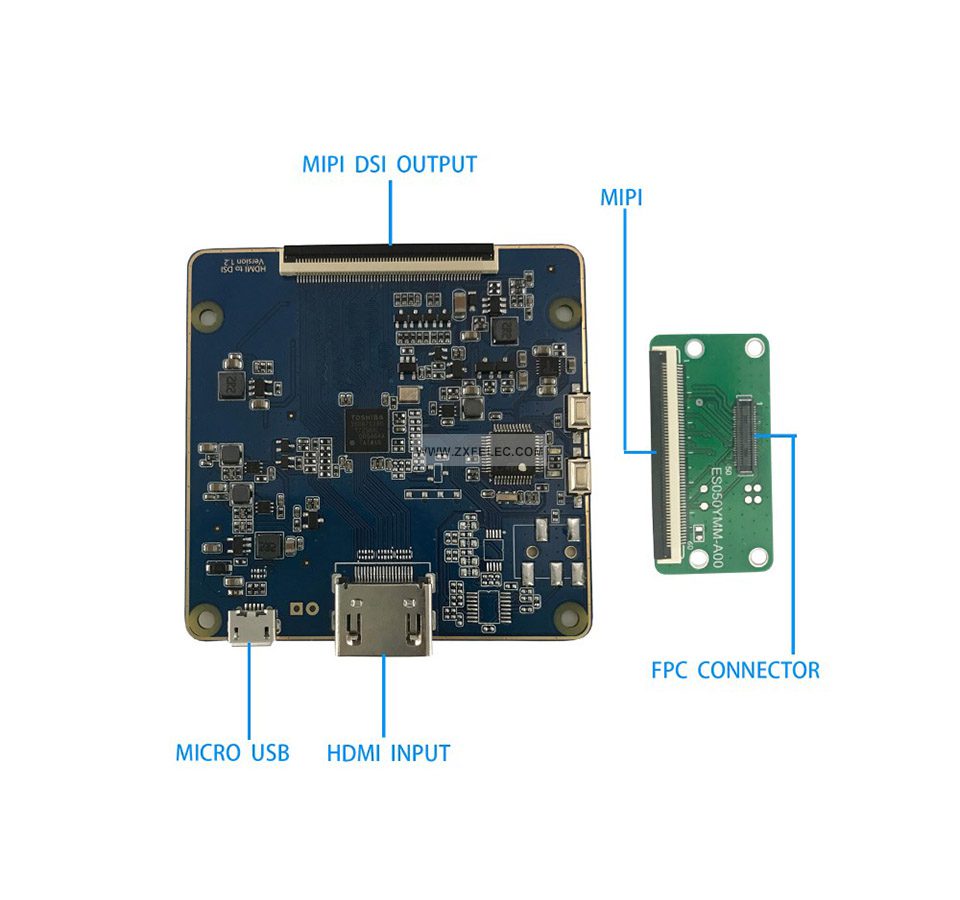

Interface type	MIPI (3 data lanes), FPC
Response time	25 (Max.)(Tr+Td)
Touch screen	Without or available
